CD74HC393E - High Speed CMOS Logic Dual 4 -Stage Binary Counter

Harris Corporation

📥 Download Datasheet

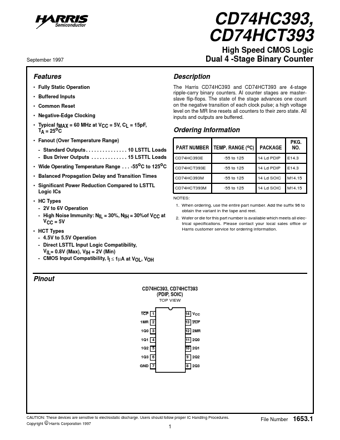

CD74HC393E Datasheet Preview — Preview of CD74HC393E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CD74HC393E
Manufacturer	Harris Corporation
File Size	31.70 KB
Description	High Speed CMOS Logic Dual 4 -Stage Binary Counter
Datasheet	CD74HC393E_HarrisCorporation.pdf

CD74HC393E Product details

Description

The Harris CD74HC393 and CD74HCT393 are 4-stage ripple-carry binary counters.

Features

Fully Static Operation.
Buffered Inputs.
Common Reset.
Negative-Edge Clocking.
Typical fMAX = 60 MHz at VCC = 5V, CL = 15pF, TA = 25oC.
Fanout (Over Temperature Range) - Standard Outputs.
10 LSTTL Loads - Bus Driver Outputs.
. . . 15 LSTTL Loads.
Wide Operating Temperature Range . . . -55oC to 125oC.
Balanced Propagation Delay and Transition Times.
Signiﬁcant Power Reducti.
