HDG12864F-1 - 128 x 64 Dots Graphic Display Module

Hantronix

HDG12864F-1 Description

HDG12864F-1 Dimensional Drawing 77.5±0.2 70.7 (V/A) 66.52 (A/A) Chip On Glass technology 128 X 64 Dots Graphic 2.8 MAX 0.52 33.24 (A/A) 38.8 (V/A) .

HDG12864F-1 Features

* Back light None Connection Flat Flex Cable OptionsSTN/FSTN, Transflective or Reflective Polarizer Built-in ControllerEpson/S-MOS SED1565 Power Supply VDD V1 L C M 1.0uF x 5 V5 5.0V CAP2+ CAP2CAP1+ CAP1VOUT 4.7uF x 3 0.52 0.48 + Physical Data Module Size77.5W x 51.3H x 2.8T mm Viewing Area Size

📥 Download Datasheet

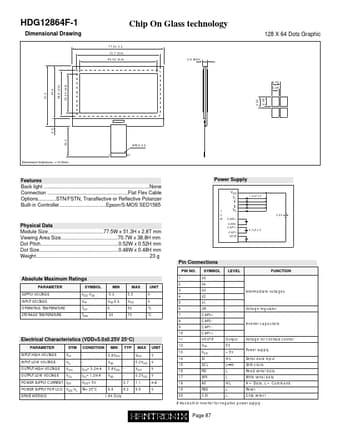

HDG12864F-1 Datasheet Preview — Preview of HDG12864F-1 PDF

Datasheet Details

Part number: HDG12864F-1
Manufacturer: Hantronix
File Size: 26.51 KB
Datasheet: HDG12864F-1_Hantronix.pdf
Description: 128 x 64 Dots Graphic Display Module
