HMF8M32M8GL - FLASH-ROM MODULE

Hanbit Electronics

Datasheet Details

Part number	HMF8M32M8GL
Manufacturer	Hanbit Electronics
File Size	459.59 KB
Description	FLASH-ROM MODULE

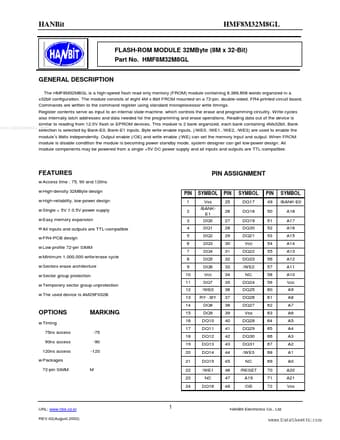

Datasheet	HMF8M32M8GL_HanbitElectronics.pdf

The HMF8M32M8GL is a high-speed flash read only memory (FROM) module containing 8,388,608 words organized in a x32bit configuration.

w Access time : 75, 90 and 120ns w High-density 32MByte design w High-reliability, low-power design w Single + 5V ± 0.5V power supply w Easy memory expansion w All inputs and outputs are TTL-compatible w FR4-PCB design w Low profile 72-pin SIMM w Minimum 1,000,000 write/erase cycle w Sectors erase architecture w Sector group protection w Temporary sector group unprotection w The used device is AM29F032B PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 -75 -90 -120 17 18 19 20 21 M 22 23 24 PIN ASSIGN.
