HFDOM40KRxxx - 40Pin Flash Disk Module

Datasheet Summary

Description

The HFDOM40KRxxx series 40Pin Flash Disk Module is a flash technology based with True IDE interface flash memory card.

It is constructed with flash disk controller chip and NAND-type (Samsung) flash memory device.

The HFDOM40KRxxx series operates in both 3.3-Volt and 5.0-Volt power supplies.

Features

  • ATA / True IDE compatible host interface ATA command set compatible Automatic sensing of PC Card ATA or true IDE host interface. Very high performance, very low power consumption Automatic error correction Auto Standby to save power consumption. Supports power down commands and sleep modes. Support for 8 or 16 bit host transfers 3.3V/5.0V operation voltage Host Interface bus width : 8/16 bit Access Flash Interface bus width : 8 bit Access Capacity : Min. 16MB ~ Max. 1GMB.

📥 Download Datasheet

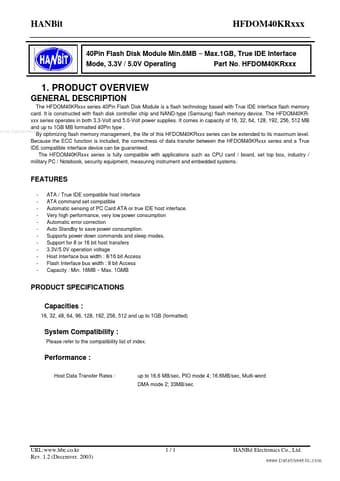

Datasheet preview – HFDOM40KRxxx

Datasheet Details

Part number HFDOM40KRxxx
Manufacturer Hanbit Electronics
File Size 193.09 KB
Description 40Pin Flash Disk Module
Datasheet download datasheet HFDOM40KRxxx Datasheet
Additional preview pages of the HFDOM40KRxxx datasheet.

📁 Similar Datasheet

  • HFD1N60 - N-Channel MOSFET (SemiHow)
  • HFD1N60F - 600V N-Channel MOSFET (SemiHow)
  • HFD1N60S - N-Channel MOSFET (SemiHow)
  • HFD1N65 - N-Channel MOSFET (SemiHow)
  • HFD1N65S - N-Channel MOSFET (SemiHow)
  • HFD1N70 - N-Channel MOSFET (SemiHow)
  • HFD1N80 - N-Channel MOSFET (SemiHow)
  • HFD2 - SUBMINIATURE DIP RELAY (ETC)
  • HFD2 - SUMINIATURE DIP RELAY (Hongfa)
  • HFD23 - RELAY (Hongfa Technology)
Other Datasheets by Hanbit Electronics

Full PDF Text Transcription

Click to expand full text
HANBit HFDOM40KRxxx 40Pin Flash Disk Module Min.8MB ~ Max.1GB, True IDE Interface Mode, 3.3V / 5.0V Operating Part No. HFDOM40KRxxx 1. PRODUCT OVERVIEW GENERAL DESCRIPTION The HFDOM40KRxxx series 40Pin Flash Disk Module is a flash technology based with True IDE interface flash memory card. It is constructed with flash disk controller chip and NAND-type (Samsung) flash memory device. The HFDOM40KRxxx series operates in both 3.3-Volt and 5.0-Volt power supplies. It comes in capacity of 16, 32, 64, 128, 192, 256, 512 MB and up to 1GB MB formatted 40Pin type . www.DataSheet4U.com By optimizing flash memory management, the life of this HFDOM40KRxxx series can be extended to its maximum level.
