Description

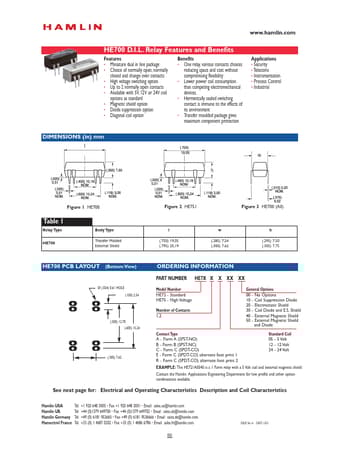

www.hamlin.com HE700 D.I.L.Relay .
and Coil Characteristics
Hamlin USA Tel: +1 920 648 3000.
Fax: +1 920 648 3001.
Email: sales.
Features
* Features
* Miniature dual in line package
* Choice of normally open, normally
closed and change over contacts
* High voltage switching option
* Up to 2 normally open contacts
* Available with 5V, 12V or 24V coil
options as standard
* Magnetic shield o
Applications
* Security
* Telecoms
* Instrumentation
* Process Control
* Industrial
DIMENSIONS (in) mm
Figure 1 HE700
Table 1
Relay Type
HE700
Body Type
Transfer Molded External Shield
Figure 2 HE751
Figure 3 HE700 (All)
l
(.750) 19,05 (.795) 20,19
w
(.285) 7,24 (.
