S9702 - Si photodiode

S9702 Description

Si photodiode S9702 RGB color sensor The S9702 is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the .

S9702 Applications

* Portable or mobile equipment RGB-LCD backlight monitors Detectors for various light sources Color detection Absolute maximum ratings Parameter Symbol Value Unit Reverse voltage Operating temperature Storage temperature VR max Topr Tstg 10 -25 to +85 -40 to +85 V °C °C

📥 Download Datasheet

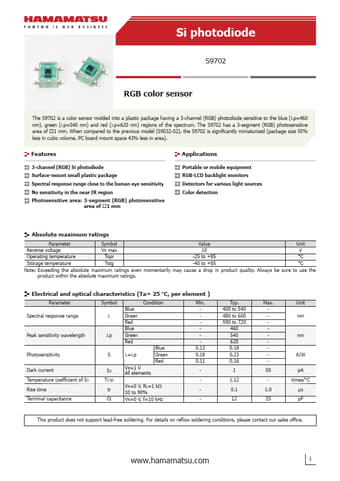

Preview of S9702 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S9702
Manufacturer
Hamamatsu
File Size
440.17 KB
Datasheet
S9702-Hamamatsu.pdf
Description
Si photodiode
