HV101WX1-1E2 - TFT LCD

HV101WX1-1E2 Description

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF HYDIS AND MUST BE.
OF CHANGES. Initial Release. Wx (0.

HV101WX1-1E2 Features

* Thin and Light Weight
* 3.3 V Logic Power Supply
* 1 Channel LVDS Interface
* SMD LED (40EA) Array (Bottom Side/Horizontal Direction)
* 16,777,216 Colors (With dither & HFRC)
* Data Enable Signal Mode
* Green Product (RoHS) SPEC. NUMBER SPEC TITLE HV101WX1-1E2 Prelimin

📥 Download Datasheet

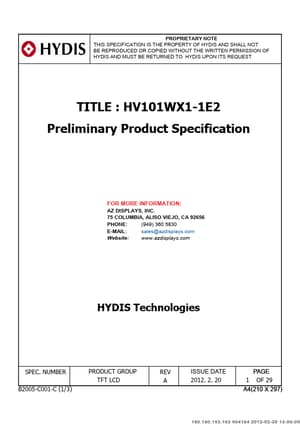

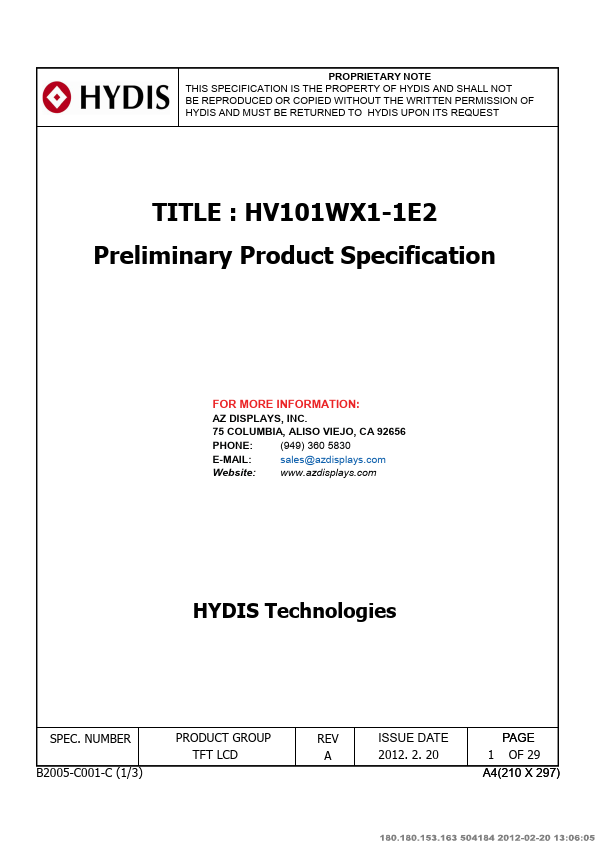

Preview of HV101WX1-1E2 PDF

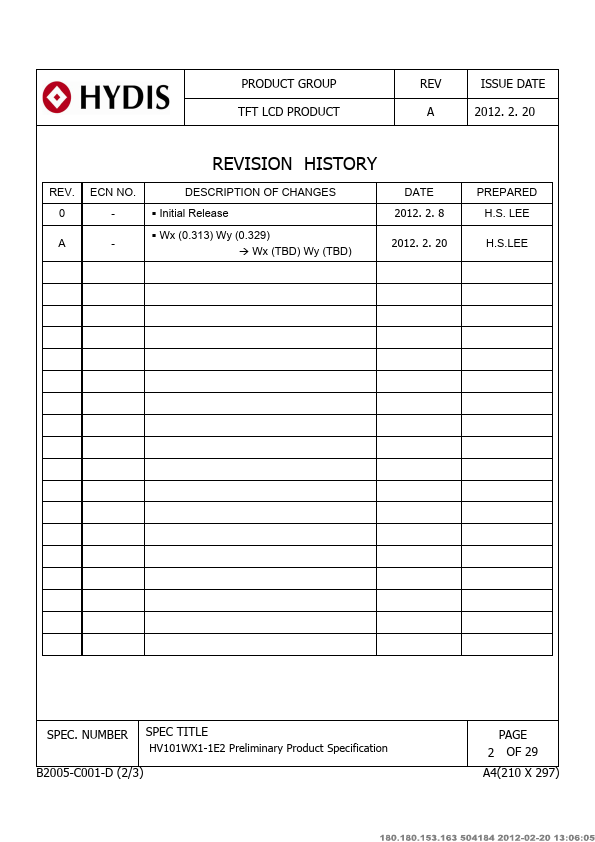

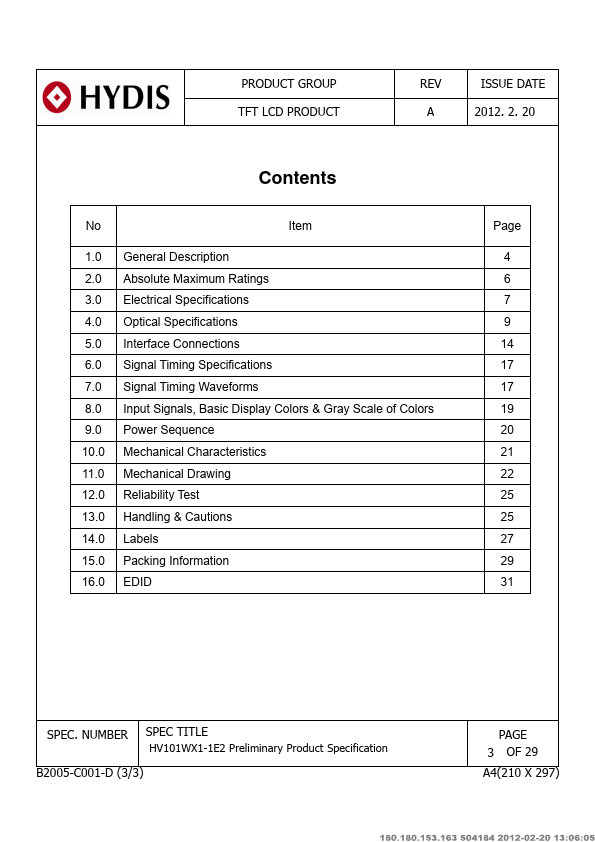

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV101WX1-1E2
Manufacturer
HYDIS
File Size
0.97 MB
Datasheet
HV101WX1-1E2-HYDIS.pdf
Description
TFT LCD
