HV089WX1-100 - TFT LCD

HV089WX1-100 Description

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF HYDIS AND MUST BE.
OF CHANGES Initial Release CI Logo Change (HYDIS) g g Luminance ( (5,8page) , p g ) 1.

HV089WX1-100 Features

* Thin and light weight 3 3 V power supply 3.3 Low driving voltage and low power consumption 1 Channel LVDS Interface SMD LED (36EA) Array (Top Side/Horizontal Direction) 262,144 colors Data enable signal mode Front Mounting Frame RoHS Produc

📥 Download Datasheet

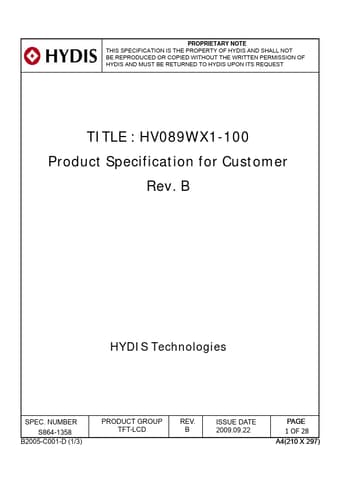

Preview of HV089WX1-100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV089WX1-100
Manufacturer
HYDIS
File Size
722.46 KB
Datasheet
HV089WX1-100-HYDIS.pdf
Description
TFT LCD
