P6KEG18A, P6KEG6.8A - Uni/Bi-Directional TVS Diodes

Name: P6KEG18A
SKU: P6KEG18A-1585558

📥 Download Datasheet

P6KEG18A Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KEG18A, P6KEG6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	P6KEG18A, P6KEG6.8A
Manufacturer	HY
File Size	508.54 KB
Description	Uni/Bi-Directional TVS Diodes
Datasheet	P6KEG6.8A-HY.pdf
Note	This datasheet PDF includes multiple part numbers: P6KEG18A, P6KEG6.8A. Please refer to the document for exact specifications by model.

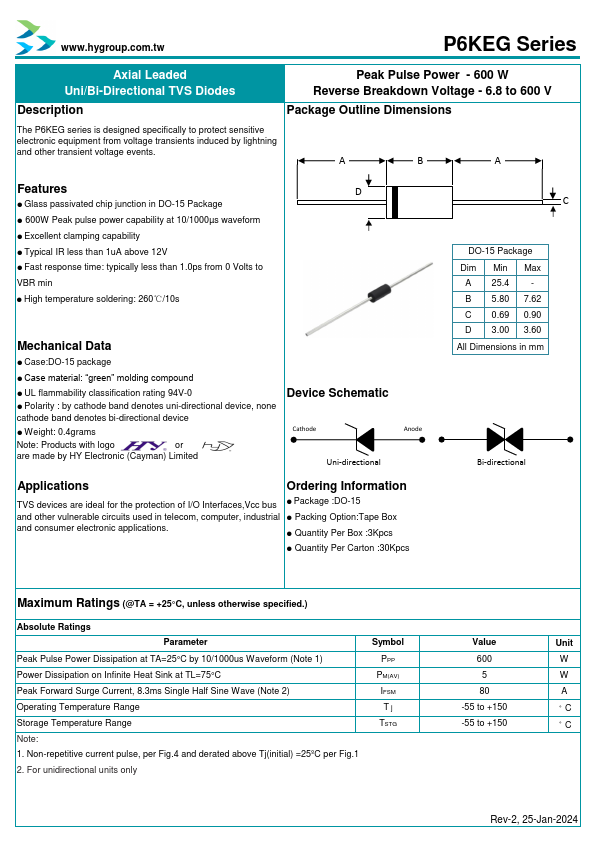

P6KEG18A Product details

Description

Package Outline Dimensions The P6KEG series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.A B A

Features

D.
Glass passivated chip junction in DO-15 Package.
600W Peak pulse power capability at 10/1000µs waveform.
Excellent clamping capability.
Typical IR less than 1uA above 12V.
Fast response time: typically less than 1.0ps from 0 Volts to VBR min.
High temperature soldering: 260℃/10s Mechanical Data.
Case:DO-15 package.
Case material: “green” molding compound.
UL flammability classification rating 94V-0.
Polarity : by cathode band deno.
