MBRF2080CT - SCHOTTKY BARRIER RECTIFIERS

Download the MBRF2080CT datasheet PDF (MBRF2030CT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky barrier rectifiers.

Features

  • Metal of silicon rectifier , majority carrier conduction.
  • Guard ring for transient protection.
  • Low power loss,high efficiency.
  • High current capability,low VF.
  • High surge capacity.
  • Plastic package has UL flammability classification 94V-0.
  • For use in low voltage,high frequency inverters,free wheeling,and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRF2030CT-HY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBRF2080CT
Manufacturer HY
File Size 134.81 KB
Description SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet MBRF2080CT Datasheet

📁 Similar Datasheet

  • MBRF2080CT - DUAL SCHOTTKY RECTIFIERS (SEMTECH)
  • MBRF2080CT - 20 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • MBRF2080CT - Schottky Barrier Rectifier (Diotech)
  • MBRF2080CT - Isolated Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • MBRF2080CT - Schottky Barrier Rectifiers (GME)
  • MBRF2080CT - Schottky Barrier Rectifier (SEMTECH)
  • MBRF2080CTL - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBRF2080 - Schottky Barrier Rectifiers (GME)
  • MBRF200100 - Silicon Power Schottky Diode (America Semiconductor)
  • MBRF200100 - Silicon Power Schottky Diode (GeneSiC)
Other Datasheets by HY

Full PDF Text Transcription

Click to expand full text

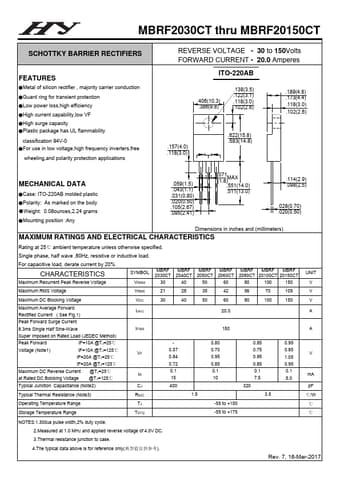

MBRF2030CT thru MBRF20150CT SCHOTTKY BARRIER RECTIFIERS FEATURES ●Metal of silicon rectifier , majority carrier conduction ●Guard ring for transient protection ●Low power loss,high efficiency ●High current capability,low VF ●High surge capacity ●Plastic package has UL flammability classification 94V-0 ●For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications REVERSE VOLTAGE - 30 to 150Volts FORWARD CURRENT - 20.0 Amperes ITO-220AB .406(10.3) .386(9.8) .138(3.5) .122(3.1) .118(3.0) .102(2.6) .189(4.8) .173(4.4) .118(3.0) .102(2.6) .157(4.0) .118(3.0) .622(15.8) .583(14.8) MECHANICAL DATA ●Case: ITO-220AB molded plastic ●Polarity: As marked on the body ●Weight: 0.08ounces,2.24 grams ●Mounting position :Any .059(1.5) .043(1.1) .031(0.80) .
