MBRF20150CT - SCHOTTKY BARRIER RECTIFIERS

Download the MBRF20150CT datasheet PDF. This datasheet also covers the MBRF2030CT variant, as both devices belong to the same schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Metal of silicon rectifier , majority carrier conduction.
  • Guard ring for transient protection.
  • Low power loss,high efficiency.
  • High current capability,low VF.
  • High surge capacity.
  • Plastic package has UL flammability classification 94V-0.
  • For use in low voltage,high frequency inverters,free wheeling,and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRF2030CT-HY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBRF20150CT
Manufacturer HY
File Size 134.81 KB
Description SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet MBRF20150CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBRF20150CT Schottky Barrier Rectifier Inchange Semiconductor
MBRF20150CT 20A High Power Schottky Barrier Rectifiers CITC
MBRF20150CT SCHOTTKY RECTIFIER SMC Diode
MBRF20150CT Isolated Schottky Barrier Rectifiers Taiwan Semiconductor
MBRF20150CT 20.0 Ampere Insulated FullPak High Voltage Schottky Barrier Rectifiers Thinki Semiconductor

Other Datasheets by HY

Part Number Description
MBRF20100CT SCHOTTKY BARRIER RECTIFIERS
MBRF2030CT SCHOTTKY BARRIER RECTIFIERS
MBRF2040CT SCHOTTKY BARRIER RECTIFIERS
MBRF2050CT SCHOTTKY BARRIER RECTIFIERS
MBRF2060CT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

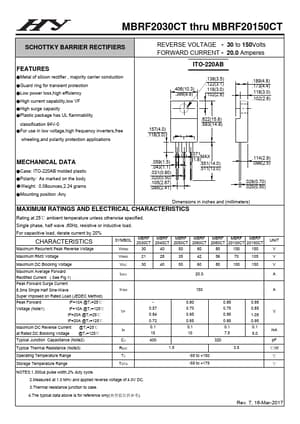

MBRF2030CT thru MBRF20150CT SCHOTTKY BARRIER RECTIFIERS FEATURES ●Metal of silicon rectifier , majority carrier conduction ●Guard ring for transient protection ●Low power loss,high efficiency ●High current capability,low VF ●High surge capacity ●Plastic package has UL flammability classification 94V-0 ●For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications REVERSE VOLTAGE - 30 to 150Volts FORWARD CURRENT - 20.0 Amperes ITO-220AB .406(10.3) .386(9.8) .138(3.5) .122(3.1) .118(3.0) .102(2.6) .189(4.8) .173(4.4) .118(3.0) .102(2.6) .157(4.0) .118(3.0) .622(15.8) .583(14.8) MECHANICAL DATA ●Case: ITO-220AB molded plastic ●Polarity: As marked on the body ●Weight: 0.08ounces,2.24 grams ●Mounting position :Any .059(1.5) .043(1.1) .031(0.80) .
