GBU2506 - GLASS PASSIVATED BRIDGE RECTIFIERS

Download the GBU2506 datasheet PDF. This datasheet also covers the GBU25005 variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

Surge overload rating -350 amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
Plastic material has U/L flammability classification 94V-0.
Mounting postition:Any GBU25005 thru GBU2510.

📥 Download Datasheet

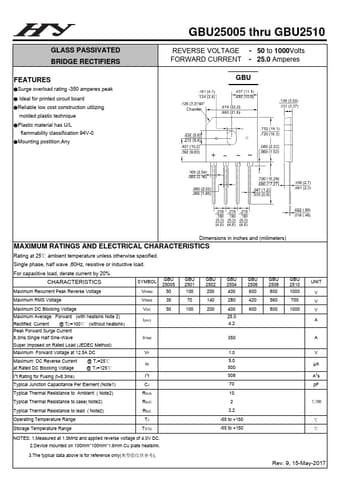

GBU2506 glass passivated bridge rectifiers by HY - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GBU25005-HY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GBU2506
Manufacturer	HY
File Size	148.05 KB
Description	GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet	GBU2506 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
GBU2506	25 Amp Single Phase Glass Passivated Bridge Rectifiers	MCC
GBU2506	Silicon Bridge Rectifiers	GME
GBU2506	Glass Passivated Bridge Rectifiers	GOOD-ARK
GBU2506	Molding Single-Phase Bridge Rectifier	SeCoS
GBU2506	Bridge Rectifier	Yangzhou Yangjie

Other Datasheets by HY

Part Number	Description
GBU25005	GLASS PASSIVATED BRIDGE RECTIFIERS
GBU2501	GLASS PASSIVATED BRIDGE RECTIFIERS
GBU2502	GLASS PASSIVATED BRIDGE RECTIFIERS
GBU2504	GLASS PASSIVATED BRIDGE RECTIFIERS
GBU2508	GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

GLASS PASSIVATED BRIDGE RECTIFIERS FEATURES ●Surge overload rating -350 amperes peak ● Ideal for printed circuit board ●Reliable low cost construction utilizing molded plastic technique ●Plastic material has U/L flammability classification 94V-0 ●Mounting postition:Any GBU25005 thru GBU2510 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 25.0 Amperes GBU Dimensions in inches and (milimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.
