D2KB8 - GLASS PASSIVATED BRIDGE RECTIFIERS

Download the D2KB8 datasheet PDF (D2KB05 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for glass passivated bridge rectifiers.

Features

Glass passivated chip junction.
High case dielectric strength.
High surge current capability ldeal for printed circuit board D2KB05 thru D2KB10.

📥 Download Datasheet

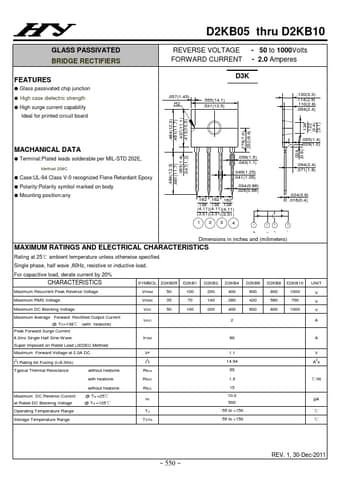

D2KB8 glass passivated bridge rectifiers by HY - Datasheet Preview — Note: The manufacturer provides a single datasheet file (D2KB05-HY.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	D2KB8
Manufacturer	HY
File Size	37.50 KB
Description	GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet	D2KB8 Datasheet

📁 Similar Datasheet

D2KB8 - Glass Passivated Bridge Rectifiers (WEITRON)

D2KB80 - Molding Single-Phase Bridge Rectifier (SeCoS)

D2KB80 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier (LRC)

D2KB80 - 2.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP ELECTRONICS)

D2KB05 - Glass Passivated Bridge Rectifiers (WEITRON)

D2KB05 - 2.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP ELECTRONICS)

D2KB1 - Glass Passivated Bridge Rectifiers (WEITRON)

D2KB10 - Molding Single-Phase Bridge Rectifier (SeCoS)

D2KB10 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier (LRC)

D2KB10 - Glass Passivated Bridge Rectifiers (WEITRON)

Full PDF Text Transcription

Click to expand full text

GLASS PASSIVATED BRIDGE RECTIFIERS FEATURES ● Glass passivated chip junction ● High case dielectric strength ● High surge current capability ldeal for printed circuit board D2KB05 thru D2KB10 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 2.0 Amperes D3K .057(1.45) R2 .555(14.1) .531(13.5) .130(3.3) .114(2.9) .110(2.8) .094(2.4) .134 .122 (3.4) (3.1) .484(12.3) .461(11.7) .437(11.1) .413(10.5) .276(7.0) .252(6.4) .484(12.3) .461(11.7) .055(1.4) .047(1.2) MACHANICAL DATA ● Terminal:Plated leads solderable per MIL-STD 202E, Method 208C ● Case:UL-94 Class V-0 recognized Flane Retardant Epoxy .059(1.5) .043(1.1) .049(1.25) .041(1.05) .024 (0.6) .055(1.4) .039(1.0) .094(2.4) .071(1.8) ● Polarity:Polarity symbol marked on body ● Mounting position:any .034(0.86) .026(0.66) .
