SS55, SS510 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS55 Description

SS52 thru SS510 SURFACE MOUNT www.DataSheet4U.com SCHOTTKY BARRIER RECTIFIERS .

SS55 Features

* Metal-Semiconductor junction with gard ring
* Epitaxial construction
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94V-0
* For use in low vlotage, high frequency inverters, .280(7.11) .260(6.60) .012(.305) .006(.152) .103

SS55 Applications

* MECHANICAL DATA
* Case： Molded Plastic
* Polarity:Color band denotes cathode
* Weight: 0.007 ounces,0.21 grams .060(1.52) .030(0.76) .320(8.13) .305(7.75) .008(.203) .002(.051) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS55, SS510. Please refer to the document for exact specifications by model.

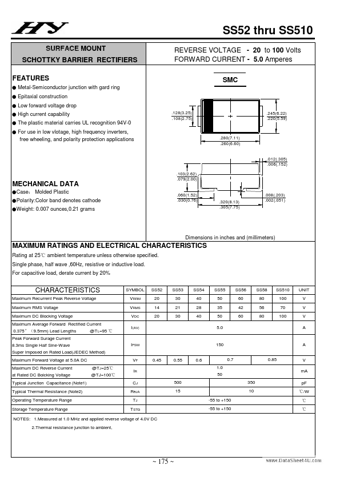

datasheet Preview Page 2
