KBU610G - GLASS PASSIVATED BRIDGE RECTIFIERS

Download the KBU610G datasheet PDF. This datasheet also covers the KBU6005G variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Surge overload rating -150 amperes peak.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KBU6005G_HYELECTRONIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KBU610G
Manufacturer HY ELECTRONIC
File Size 102.09 KB
Description GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet KBU610G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KBU610G Glass Passivated Bridge Rectifier YENYO
KBU610G 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP
KBU610 Bridge Rectifier Formosa MS
KBU610 Single Phase 6.0 Amps. Glass Passivated Bridge Rectifiers JGD
KBU610 SINGLE-PHASE SILICON BRIDGE RECTIFIER Crownpo

Other Datasheets by HY ELECTRONIC

Part Number Description
KBU6005G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU601G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU602G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU604G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU606G GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

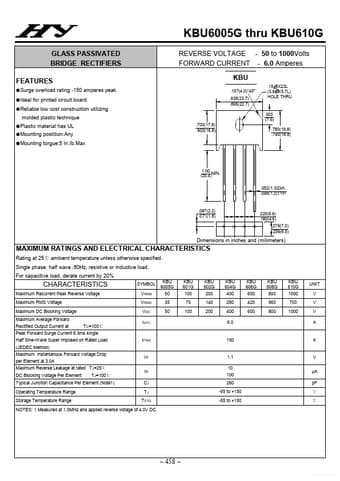

KBU6005G thru KBU610G GLASS PASSIVATED BRIDGE RECTIFIERS FEATURES ●Surge overload rating -150 amperes peak ●Ideal for printed circuit board ●Reliable low cost construction utilizing REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 6.0 Amperes KBU .157(4.0)*45° .935(23.7) .895(22.7) .15 X23L (3.8 X5.7L) HOLE THRU molded plastic technique ●Plastic material has UL ●Mounting postition:Any ●Mounting torgue:5 In.Ib.Max .700(17.8) .600(16.8) 300 (7.5) .780(19.8) .740(18.8) 1.00 MIN. (25.4) .052(1.3)DIA. .048(1.2)TYP. .087(2.2) .071(1.8) .220(5.6) .180(4.6) .276(7.0) .256(6.5) Dimensions in inches and (milimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.
