4GBJ10005 - (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS

Key Features

  • Rating to 1000V PRV.
  • Ideal for printed circuit board.
  • Low forward voltage drop,high current capability.
  • Reliable low cost construction utilizing molded plastic.

📥 Download Datasheet

Datasheet Details

Part number 4GBJ10005
Manufacturer HY ELECTRONIC
File Size 59.77 KB
Description (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet 4GBJ10005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
4GBJ4005 GLASS PASSIVATED BRIDGE RECTIFIERS Bruckewell
4GBJ4005 4.0 Amp Glass Passivited Bridge Rectifiers SeCoS
4GBJ4005 GLASS PASSIVATED BRIDGE RECTIFIERS MOD
4GBJ4005-G Glass Passivated Bridge Rectifiers Comchip
4GBJ401 GLASS PASSIVATED BRIDGE RECTIFIERS Bruckewell

Other Datasheets by HY ELECTRONIC

Part Number Description
4GBJ1001 (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS
4GBJ1002 (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS
4GBJ1004 (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS
4GBJ1006 (4GBJ10005 - 4GBJ1010) GLASS PASSIVATED BRIDGE RECTIFIERS
4GBJ1006F BRIDGE RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

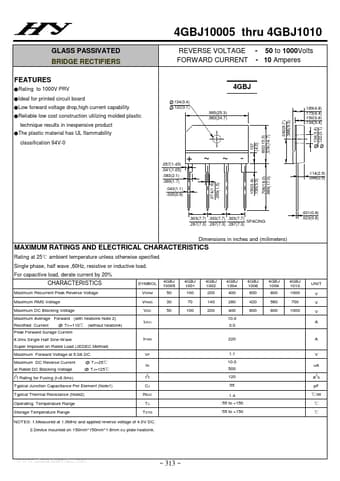

4GBJ10005 thru 4GBJ1010 GLASS PASSIVATED BRIDGE RECTIFIERS FEATURES ●Rating to 1000V PRV ●Ideal for printed circuit board ●Low forward voltage drop,high current capability ●Reliable low cost construction utilizing molded plastic REVERSE VOLTAGE FORWARD CURRENT - 50 to 1000Volts - 10 Amperes 4GBJ Ø.134(3.4) Ø.122(3.1) .382(9.7) .366(9.3) .995(25.3) .983(24.7) .189(4.8) .173(4.4) .150(3.8) .134(3.4) .134(3.4) .122(3.1) .031(0.8) .023(0.6) technique results in inexpensive product classification 94V-0 .602(15.3) .578(14.7) ●The plastic material has UL flammability .157 (4.0) Ø Ø .043(1.1) .035(0.9) .303(7.7) .303(7.7) .303(7.7) SPACING .287(7.3) .287(7.3) .287(7.
