HY5110NA2W - N-Channel Enhancement Mode MOSFET

📥 Download Datasheet

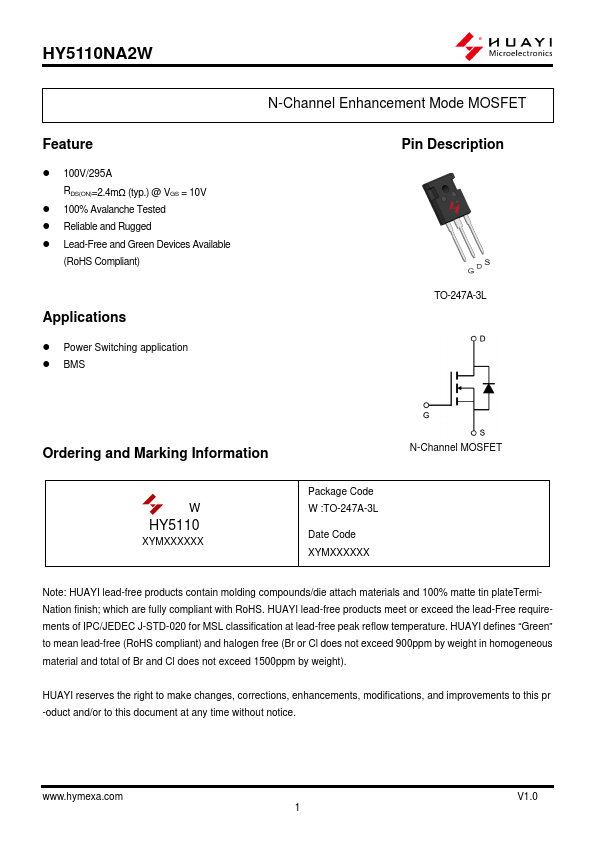

Preview of HY5110NA2W PDF

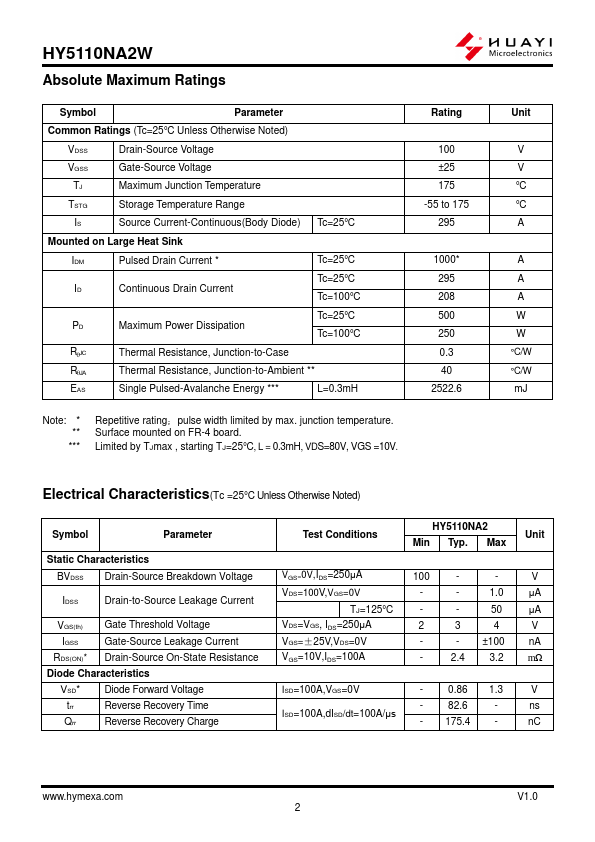

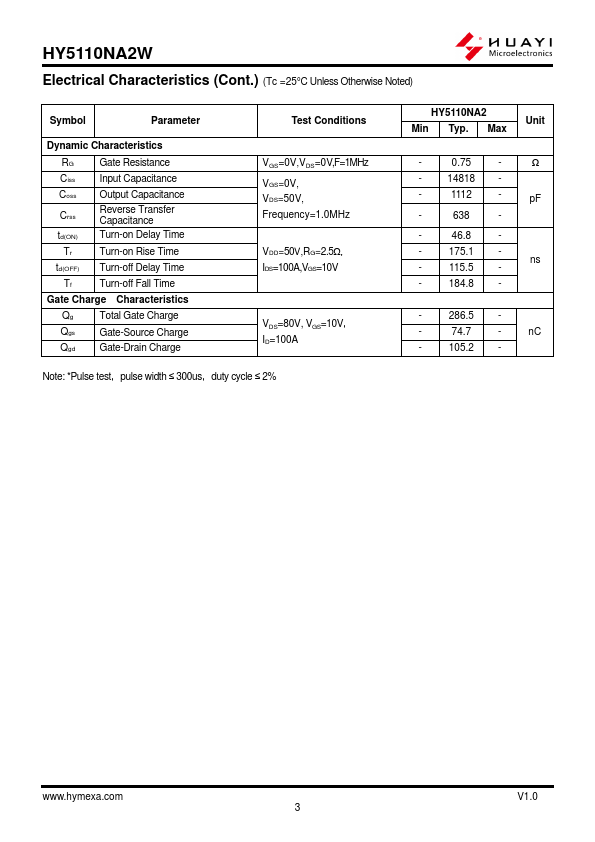

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HY5110NA2W
Manufacturer HUAYI
File Size 543.67 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HY5110NA2W-HUAYI.pdf

HY5110NA2W Product details

Description

TO-247A-3L Ordering and Marking Information W HY5110 XYMXXXXXX N-Channel MOSFET Package Code W :TO-247A-3L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defines “Green” to mean lead-free (RoHS compliant) and
