HY1106S - N-Channel Enhancement Mode MOSFET

HY1106S Description

HY1106S .
DD DD S S S G Top View of SOP-8 Applications. Power Management in DC/DC Converter D G N-Channel MOSFET S Ordering and Marking Information S.

HY1106S Features

* 60V / 11A RDS(ON)= 13 m Ω (typ. ) @ VGS=10V RDS(ON)=13.5mΩ (typ. ) @ VGS=4.5V
* Avalanche Rated
* Reliable and Rugged

HY1106S Applications

* Power Management in DC/DC Converter D G N-Channel MOSFET S Ordering and Marking Information S HY1106 YYÿ XXXJWW G Package Code S : SOP-8 Date Code YYXXX WW Assembly Material G : Lead Free Device Note: HOOYI lead-free products contain molding compounds/die attach materials and 100% matt

📥 Download Datasheet

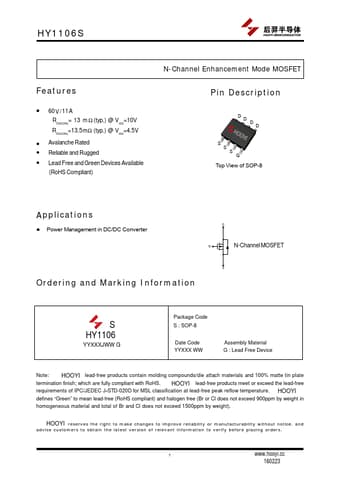

Preview of HY1106S PDF

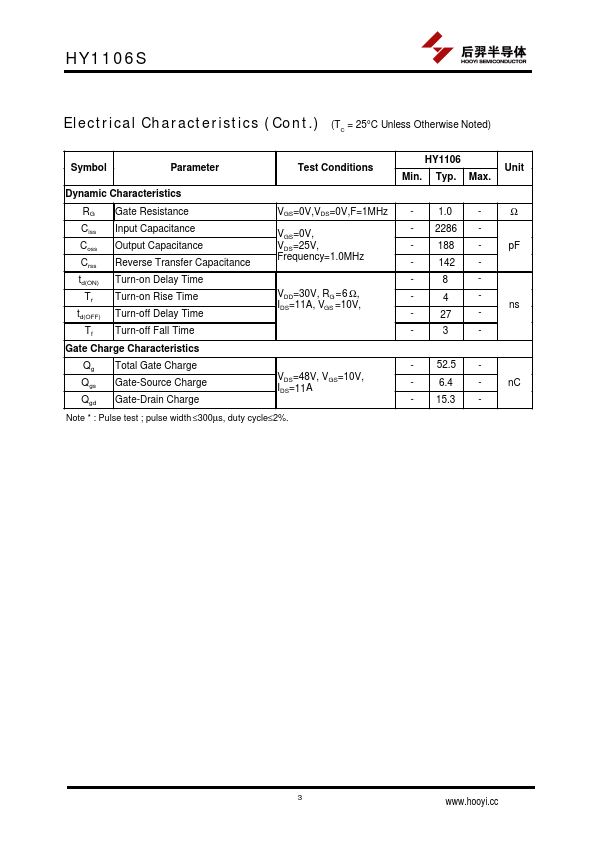

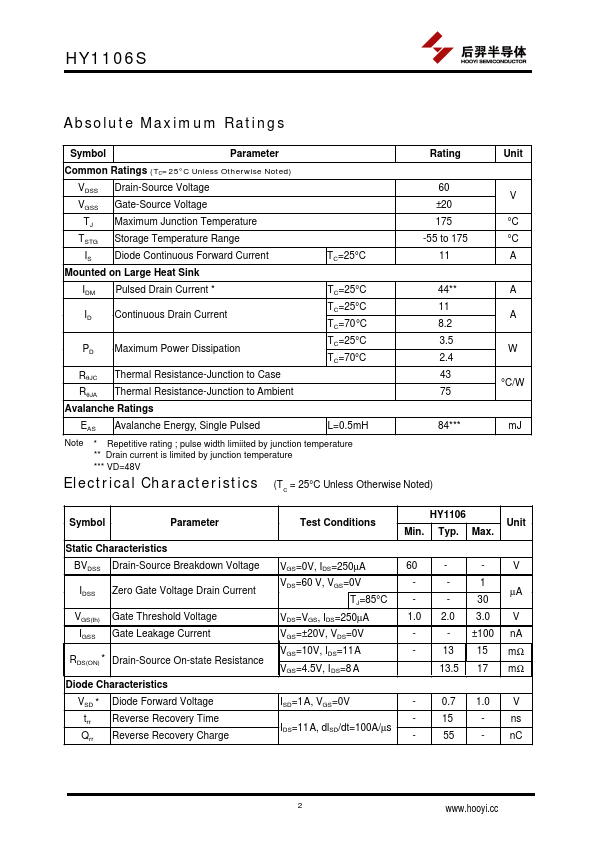

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY1106S
Manufacturer
HUAYI
File Size
4.31 MB
Datasheet
HY1106S-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET
