VDR-32D201K - Metal Oxide Varistor

HUAAN

📥 Download Datasheet

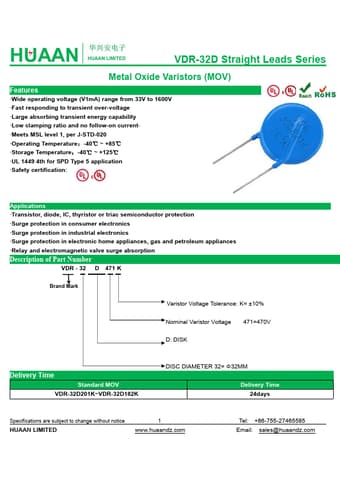

VDR-32D201K Datasheet Preview — Preview of VDR-32D201K PDF

Datasheet Details

Part number	VDR-32D201K
Manufacturer	HUAAN
File Size	179.88 KB
Description	Metal Oxide Varistor
Datasheet	VDR-32D201K-HUAAN.pdf

VDR-32D201K Product details

Description

of Part Number VDR - 32 D 471 K Brand Mark Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage 471=470V D: DISK Delivery Time Standard MOV VDR-32D201K~VDR-32D182K DISC DIAMETER 32= Φ32MM Delivery Time 24days Specifications are subject to change without notice HUAAN LIMITED 1 www.huaandz.com Tel: +86-755-27465585 Email: sales@huaandz.com Electrical Characteristics Maximum Maximum Part Number Allowable Voltage Varistor Voltage Clamping Voltage Standard MOV AC(V) DC(V) V1mA(V)

Features

Wide operating voltage (V1mA) range from 33V to 1600V.
Fast responding to transient over-voltage.
Large absorbing transient energy capability.
Low clamping ratio and no follow-on current.
Meets MSL level 1, per J-STD-020.
Operating Temperature：-40℃ ~ +85℃.
Storage Temperature：-40℃ ~ +125℃1.
UL 1449 4th for SPD Type 5.
