HT6300A, HT6333A 60V 3A 150kHz Step-Down Voltage Regulator

HT6300A Description

HT63xxA 60V 3A 150kHz Step-Down Voltage Regulator GENERAL .
The HT63xxA series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator,.

HT6300A Features

* 3.3V, 5V, 12V,18V and adjustable output versions
* Adjustable version output voltage range, 1.2V to 57V
* ±4% maximum over line and load conditions
* Guaranteed 3A output load current
* Input voltage range up to 60V
* Requires only 4 external components
* Excellent line

HT6300A Applications

* Simple high-efficiency step-down (buck) regulator
* On-card switching regulators
* Efficient pre-regulator for linear regulators ADDITIONAL INFORMATION Pb-free products:
* RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020. Green products:
* Lead

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT6300A, HT6333A. Please refer to the document for exact specifications by model.

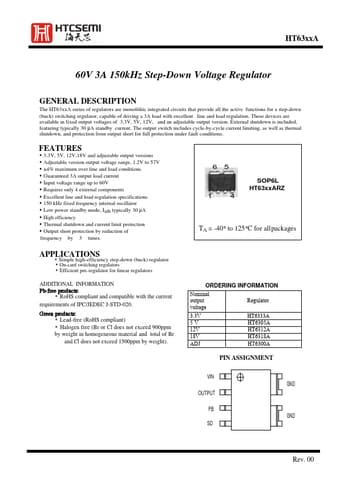

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT6300A, HT6333A
Manufacturer
HTCSEMI
File Size
727.56 KB
Datasheet
HT6333A-HTCSEMI.pdf
Description
60V 3A 150kHz Step-Down Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: HT6300A, HT6333A.
Please refer to the document for exact specifications by model.
