HT1117A 1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators

HT1117A Description

HT1117A 1.0 A Low-Dropout Positive Fixed and Adjustable Voltage Regulators The HT1117A series of positive adjustable and fixed regulators is designe.

HT1117A Features

* Output Current in Excess of 1.0 A
* 1.2 V Maximum Dropout Voltage at 800 mA Over Temperature
* Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V
* Adjustable Output Voltage Option
* No Minimum Load Requirement for Fix

HT1117A Applications

* Consumer and Industrial Equipment Point of Regulation
* Active SCSI Termination for 2.85 V Version
* Switching Power Supply Post Regulation
* Hard Drive Controllers
* Battery Chargers SOT
* 89 H 1 SUFFIX HT1117AH-xx SOT223 T 1 SUFFIX HT1117AT-x

📥 Download Datasheet

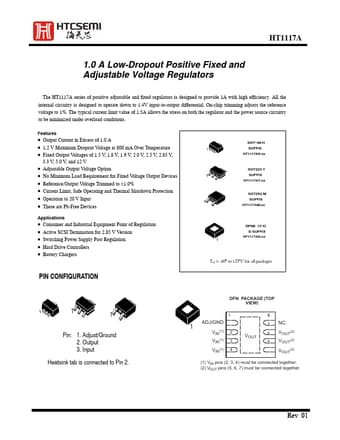

Preview of HT1117A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT1117A
Manufacturer
HTCSEMI
File Size
431.37 KB
Datasheet
HT1117A-HTCSEMI.pdf
Description
1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
