TPS7A7001 2A Ultra Low Dropout Linear Regulator

TPS7A7001 Description

2A Ultra Low Dropout Linear Regulator .
The TPS7A7001 of high performance ultra-low dropout linear regulator operates from 2.

TPS7A7001 Features

* Ultra-Low Dropout Voltage
* Compatible with low ESR MLCC as Input / Output Capacitor
* Good Line and Load Regulation
* Guaranteed Output Current of 2.0A
* Adjustable Output Voltage up to 4.5V
* Output Auto Discharge Function
* Over-Temperatur

TPS7A7001 Applications

* LCD TVs and SETTOP Boxes
* Battery Powered Equipment
* Motherboards and Graphic Cards
* Microprocessor Power Supplies
* Peripheral Cards
* High Efficiency Linear Regulators
* Battery Chargers ORDERING INFORMATION Device TPS7A7001DP Package

📥 Download Datasheet

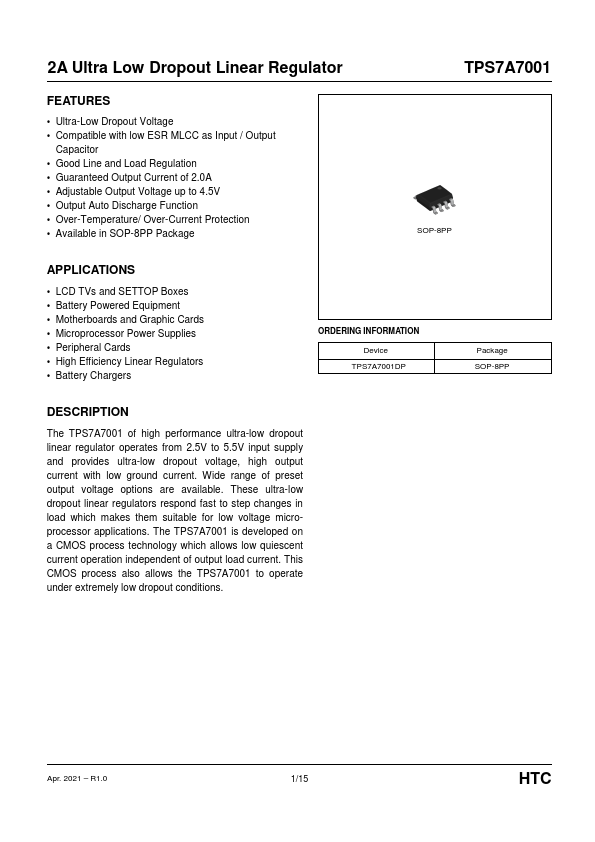

Preview of TPS7A7001 PDF

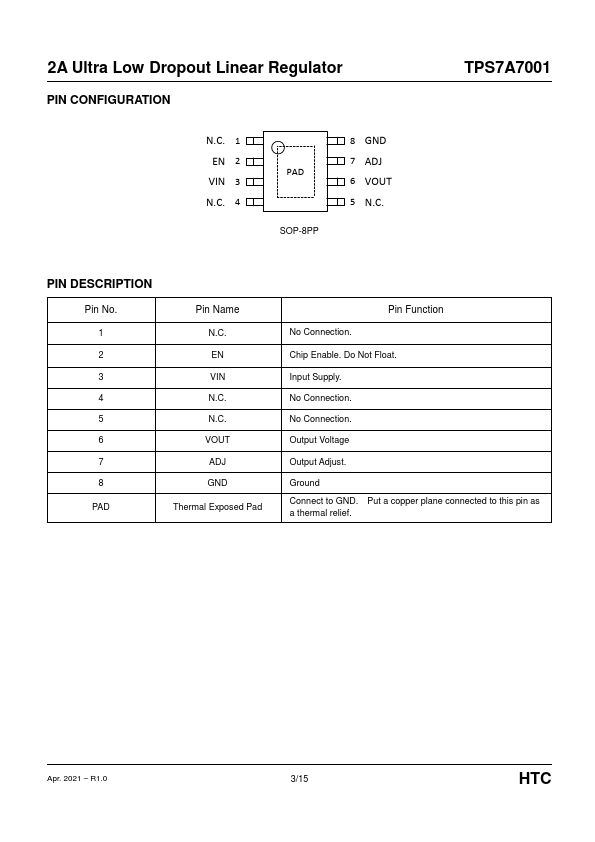

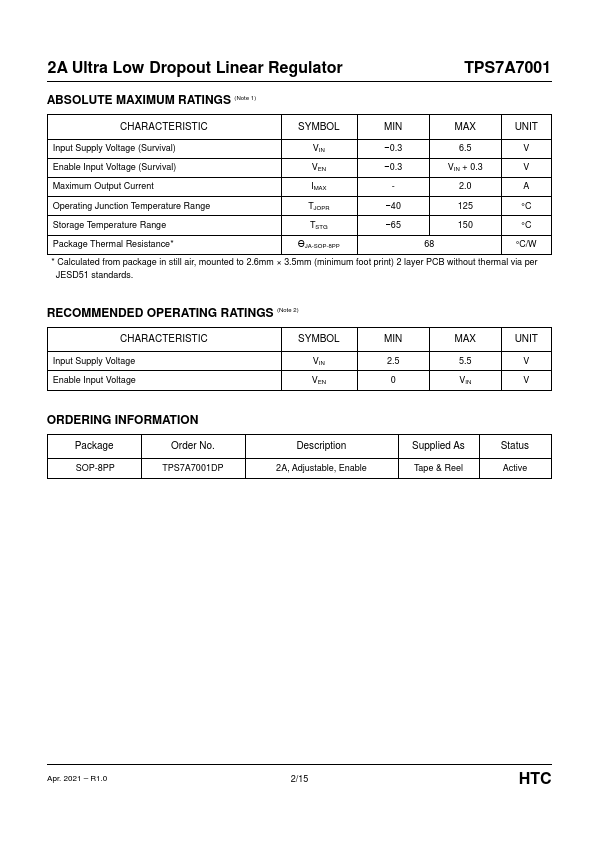

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS7A7001
Manufacturer
HTC
File Size
487.98 KB
Datasheet
TPS7A7001-HTC.pdf
Description
2A Ultra Low Dropout Linear Regulator
