LM37102C - 1A Low-Voltage Low-Dropout Regulator

Datasheet Summary

Description

The LM37102C is 1A low-dropout linear voltage regulators that provide low-voltage, high-current output.

The LM37102C offers extremely low dropout (typically 500mV at 1A).

The LM37102C is adjustable regulators, SOP8 and SOP-8PP.

Features

Fixed and adjustable output voltages to 1.24V.
Stable with MLCC and Ceramic Capacitors.
500mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.5V conversion.
1A minimum guaranteed output current.
1% initial accuracy.
Low ground current.
Current limiting and thermal shutdown.
Reversed-battery protection.
Reversed-leakage protection.
Fast transient response.
Moisture Sensitivity Level 3.

Datasheet Details

Part number	LM37102C
Manufacturer	HTC
File Size	237.66 KB
Description	1A Low-Voltage Low-Dropout Regulator
Datasheet	LM37102C Datasheet

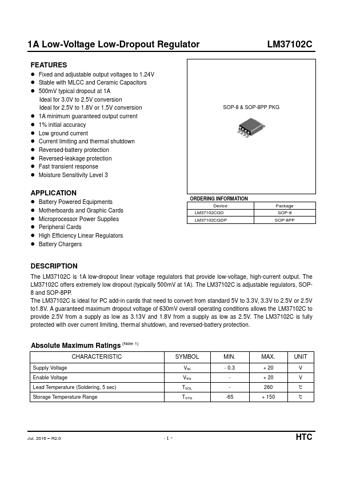

Additional preview pages of the LM37102C datasheet.

📁 Similar Datasheet

LM37102 - 1A Low-Voltage Low-Dropout Regulator (HTC Korea)

LM3710 - Microprocessor Supervisory (National Semiconductor)

LM3710 - Microprocessor Supervisory Circuits (Texas Instruments)

LM37100 - 1A Low-Voltage Low-Dropout Regulator (HTC Korea)

LM37101 - 1A Low-Voltage Low-Dropout Regulator (HTC Korea)

LM3711 - Microprocessor Supervisory (National Semiconductor)

LM3711 - Microprocessor Supervisory Circuits (Texas Instruments)

LM3712 - Microprocessor Supervisory Circuits (National Semiconductor)

LM3713 - Microprocessor Supervisory Circuits (National Semiconductor)

LM3700 - Microprocessor Supervisor (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

1A Low-Voltage Low-Dropout Regulator LM37102C FEATURES  Fixed and adjustable output voltages to 1.24V  Stable with MLCC and Ceramic Capacitors  500mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.
