LM324 - Quad Operational Amplifiers

Name: LM324
SKU: LM324-1552060

HTC

📥 Download Datasheet

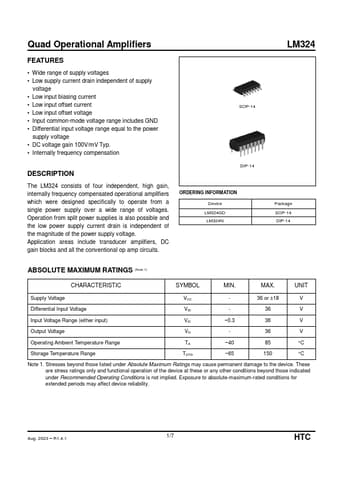

LM324 Datasheet Preview — Preview of LM324 PDF

Datasheet Details

Part number	LM324
Manufacturer	HTC
File Size	471.23 KB
Description	Quad Operational Amplifiers
Datasheet	LM324-HTC.pdf

LM324 Product details

Description

The LM324 consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

Wide range of supply voltages.
Low supply current drain independent of supply voltage.
Low input biasing current.
Low input offset current.
Low input offset voltage.
Input common-mode voltage range includes GND.
Differential input voltage range equal to the power supply voltage.
DC voltage gain 100V/mV Typ.
Internally frequency compensation.
