LM2950G - 100mA Low Dropout Voltage Regulator

Description

The LM2950G is a low power voltage regulator.

This device is an excellent choice for use in battery-powered application such as cordless telephones, radio-control systems, and portable computers.

Features

  • High accuracy output voltage.
  • Guaranteed 100 mA output.
  • Very low quiescent current.
  • Low dropout voltage.
  • Extremely tight load and line regulation.
  • Very low temperature coefficient.
  • Needs Output low-ESR ceramic capacitor for stability.
  • Logic-controlled electronic shutdown (Straight) (Bent) TO-92 PKG.

📥 Download Datasheet

Datasheet Details

Part number LM2950G
Manufacturer HTC KOREA
File Size 1.08 MB
Description 100mA Low Dropout Voltage Regulator
Datasheet download datasheet LM2950G Datasheet

📁 Similar Datasheet

  • LM295 - Ultra Reliable Power Transistors (National Semiconductor)
  • LM2954 - 300mA LOW-DROPOUT VOLTAGE REGULATOR (UTC)
  • LM2900 - LM2900/LM3900/LM3301 Quad Amplifiers (National Semiconductor)
  • LM2900 - QUADRUPLE NORTON OPERATIONAL AMPLIFIER (Texas Instruments)
  • LM2901 - Quad Comparator (Fairchild Semiconductor)
  • LM2901 - Quad voltage comparator (NXP)
  • LM2901 - Quad Voltage Comparators (Intersil Corporation)
  • LM2901 - Low Power Low Offset Voltage Quad Comparators (National Semiconductor)
  • LM2901 - Low-power quad voltage comparator (STMicroelectronics)
  • LM2901 - Low Power Low Offset Voltage Quad Comparators (ART CHIP)
Other Datasheets by HTC
  • LM2950 - 100mA LOW DROPOUT VOLTAGE REGULATORS
  • LM2951 - 100mA LOW DROPOUT VOLTAGE REGULATORS
  • LM2904 - Dual Operational Amplfier
  • LM2904D - Dual Operational Amplfier
  • LM2904G - Dual Operational Amplfiers
  • LM2904N - Dual Operational Amplfier
  • LM29150 - 1.5A Very L.D.O Voltage Regulator
  • LM29151 - 1.5A Very L.D.O Voltage Regulator

Full PDF Text Transcription

Click to expand full text

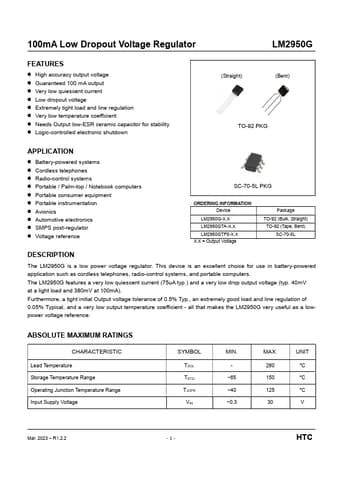

100mA Low Dropout Voltage Regulator LM2950G FEATURES  High accuracy output voltage  Guaranteed 100 mA output  Very low quiescent current  Low dropout voltage  Extremely tight load and line regulation  Very low temperature coefficient  Needs Output low-ESR ceramic capacitor for stability  Logic-controlled electronic shutdown (Straight) (Bent) TO-92 PKG APPLICATION  Battery-powered systems  Cordless telephones  Radio-control systems  Portable / Palm-top / Notebook computers  Portable consumer equipment  Portable instrumentation  Avionics  Automotive electronics  SMPS post-regulator  Voltage reference SC-70-5L PKG ORDERING INFORMATION Device LM2950G-X.X LM2950GTA-X.X LM2950GTF5-X.X X.
