LM37102 - 1A Low-Voltage Low-Dropout Regulator

This page provides the datasheet information for the LM37102, a member of the LM37101 1A Low-Voltage Low-Dropout Regulator family.

Datasheet Summary

Description

The LM37100/1/2 is 1A low-dropout linear voltage regulators that provide low-voltage, high-current output.

Features

Fixed and adjustable output voltages to 1.24V.
470mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.5V conversion.
1A minimum guaranteed output current.
1% initial accuracy.
Low ground current.
Current limiting and thermal shutdown.
Reversed-battery protection.
Reversed-leakage protection.
Fast transient response.
Moisture Sensitivity Level 3 SOT-223 PKG SOP-8 PKG TO-252 PKG.

Datasheet Details

Part number	LM37102
Manufacturer	HTC Korea
File Size	693.41 KB
Description	1A Low-Voltage Low-Dropout Regulator
Datasheet	LM37102 Datasheet

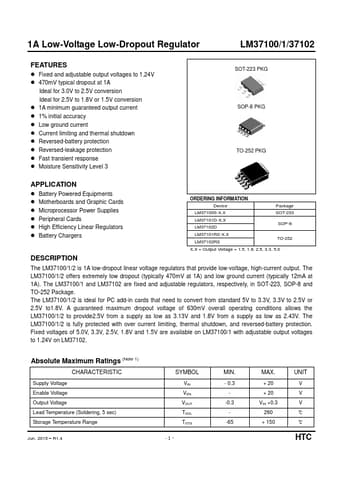

Additional preview pages of the LM37102 datasheet.
