5962-88768 - Logic Gate Optocouplers

Product Overview

HP

📥 Download Datasheet

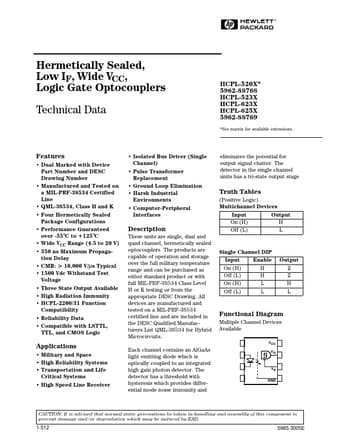

5962-88768 Logic Gate Optocouplers by HP - Datasheet Preview — Datasheet preview – 5962-88768

Datasheet Details

Part number	5962-88768
Manufacturer	HP
File Size	256.58 KB
Description	Logic Gate Optocouplers
Datasheet	5962-88768 Datasheet
Additional preview pages of the 5962-88768 datasheet.

Product details

Features

Dual Marked with Device Part Number and DESC Drawing Number.
Manufactured and Tested on a MIL-PRF-38534 Certified Line.
QML-38534, Class H and K.
Four Hermetically Sealed Package Configurations.
Performance Guaranteed over -55°C to +125°C.
Wide VCC Range (4.5 to 20 V).
350 ns Maximum Propaga- tion Delay.
CMR: > 10,000 V/µs Typical.
1500 Vdc Withstand Test Voltage.
Three State Output Available.
Hig.
