MMBT2907 - SWITCHING TRANSISTOR

Features

  • Epitaxial Planar Die Construction.
  • Complementary NPN Type Available(HABT2222) HABT2907(PNP).

📥 Download Datasheet

Datasheet Details

Part number MMBT2907
Manufacturer HOTTECH
File Size 673.64 KB
Description SWITCHING TRANSISTOR
Datasheet download datasheet MMBT2907 Datasheet

📁 Similar Datasheet

  • MMBT2907 - PNP General Purpose Amplifier (GME)
  • MMBT2907 - PNP Transistor (MIC)
  • MMBT2907 - PNP GENERAL PURPOSE AMPLIFIER (ART CHIP)
  • MMBT2907 - PNP Transistor (Samsung)
  • MMBT2907 - PNP General Purpose Amplifier (Fairchild)
  • MMBT2907 - PNP Transistor (Diotec)
  • MMBT2907 - PNP Transistor (Comchip Technology)
  • MMBT2907 - PNP Transistor (SEMTECH)
  • MMBT2907 - PNP Transistor (WEITRON)
  • MMBT2907 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by HOTTECH

Full PDF Text Transcription

Click to expand full text

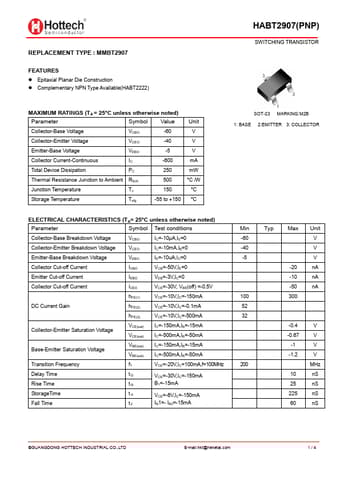

REPLACEMENT TYPE : MMBT2907 FEATURES  Epitaxial Planar Die Construction  Complementary NPN Type Available(HABT2222) HABT2907(PNP) SWITCHING TRANSISTOR MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol Value Unit Collector-Base Voltage VCBO -60 V Collector-Emitter Voltage VCEO -40 V Emitter-Base Voltage VEBO -5 V Collector Current-Continuous IC -600 mA Total Device Dissipation PC Thermal Resistance Junction to Ambient RθJA 250 mW 500 °C /W Junction Temperature TJ 150 °C Storage Temperature Tstg -55 to +150 °C SOT-23 MARKING:M2B 1: BASE 2:EMITTER 3: COLLECTOR ELECTRICAL CHARACTERISTICS (TA= 25°C unless otherwise noted) Parameter Symbol Test conditions Collector-Base Breakdown Voltage VCBO IC=-10μA,IE=0 Collector-Emitter Breakdown Voltage
