8205A - Dual N-Channel MOSFET

Datasheet Summary

Description

The 8205A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

This device is suitable for use as a Battery protection or in other Switching application.

Features

  • VDS = 19.5V,ID = 6A RDS(ON) < 37mΩ @ VGS=2.5V RDS(ON) < 27mΩ @ VGS=4.5V.
  • High Power and current handing capability.
  • Lead free product is acquired.
  • Surface Mount Package.

📥 Download Datasheet

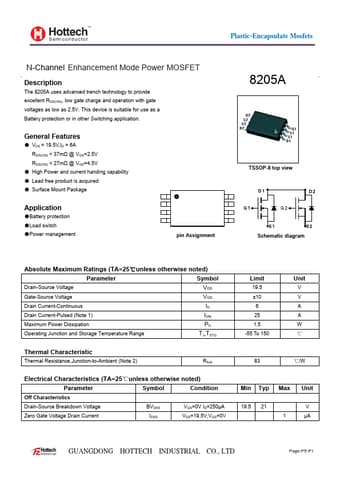

Datasheet preview – 8205A

Datasheet Details

Part number 8205A
Manufacturer HOTTECH
File Size 1.91 MB
Description Dual N-Channel MOSFET
Datasheet download datasheet 8205A Datasheet
Additional preview pages of the 8205A datasheet.

📁 Similar Datasheet

  • 8205A - Dual N-Channel MOSFET (RZC Microelectronics)
  • 8205A - Dual N-Channel MOSFET (HSMC)
  • 8205A - N-channel power MOSFET (ETC)
  • 8205A - MOSFET (GOFORD)
  • 8205A - Dual N-Channel 25-V MOSFET (VBsemi)
  • 8205A - Dual N-Channel Enhancement Mode MOSFET (UMW)
  • 8205 - LOW-DROPOUT REGULATORS (Allegro MicroSystems)
  • 8205 - N-CHANNEL POWER MOSFET (AiT Semiconductor)
  • 8205 - Dual N-Channel Power MOSFET (Fortune Semiconductor)
  • 8205B - N-channel power MOSFET (ETC)
Other Datasheets by HOTTECH

    Full PDF Text Transcription

    Click to expand full text
    Plastic-Encapsulate Mosfets N-Channel Enhancement Mode Power MOSFET Description The 8205A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features ● VDS = 19.5V,ID = 6A RDS(ON) < 37mΩ @ VGS=2.5V RDS(ON) < 27mΩ @ VGS=4.
