LD1083 - 7.5A Low Dropout Positive Regulator

Description

The LD1083 is a low dropout three terminal regulator with 7.5A output current capability.

The output voltage is adjustable with the use of a resistor divider or fixed 1.5V/1.8V/2.5V/3.3V/5V.

Dropout voltage is guaranteed to be at maximum of 1.5V with the maximum output current.

Features

  • ‹ 1.5V Max. Dropout Voltage at 7.5A Output Current. ‹ Fast Transient Response. ‹ Extremely Tight Line and Load Regulation. ‹ Current Limiting and Thermal Protection. ‹ Adjustable Output Voltage or Fixed 1.5V, 1.8V,2.5V,3.3V,5.0V.

📥 Download Datasheet

Datasheet Details

Part number LD1083
Manufacturer HOTCHIP
File Size 706.84 KB
Description 7.5A Low Dropout Positive Regulator
Datasheet download datasheet LD1083 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LD1084 5A low-drop positive voltage regulator adjustable ST Microelectronics
LD1084 5A Low Dropout Linear Regulator TAITRON
LD1085 3A low drop positive voltage regulator ST Microelectronics
LD1086 1.5A adjustable and fixed low drop positive voltage regulator ST Microelectronics
LD1086 1.5A Low Dropout Linear Regulator TAITRON

Other Datasheets by HOTCHIP

Part Number Description
LD1085 3A Low Dropout Positive Regulator
LD1086 1.5A Low Dropout Positive Regulator

Full PDF Text Transcription

Click to expand full text

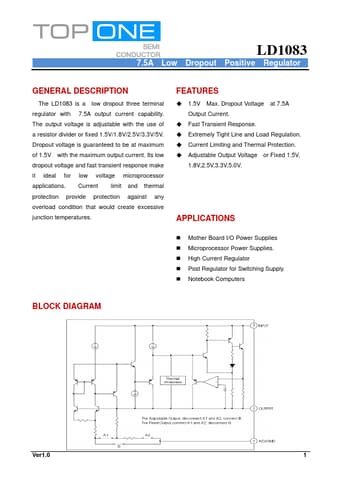

LD1083 7.5A Low Dropout Positive Regulator GENERAL DESCRIPTION The LD1083 is a low dropout three terminal regulator with 7.5A output current capability. The output voltage is adjustable with the use of a resistor divider or fixed 1.5V/1.8V/2.5V/3.3V/5V. Dropout voltage is guaranteed to be at maximum of 1.5V with the maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Current limit and thermal protection provide protection against any overload condition that would create excessive junction temperatures. FEATURES ‹ 1.5V Max. Dropout Voltage at 7.5A Output Current. ‹ Fast Transient Response. ‹ Extremely Tight Line and Load Regulation. ‹ Current Limiting and Thermal Protection.
