TCS0101 Datasheet (HOSIDEN)

TCS0101, USB Connectors

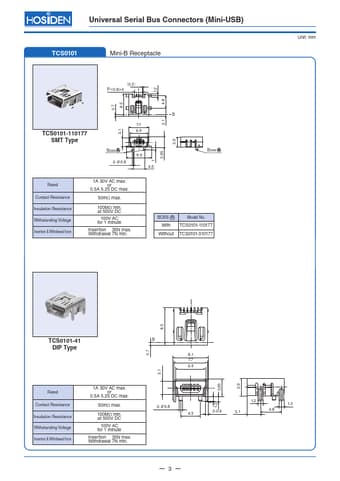

Universal Serial Bus Connectors (Mini-USB) TCS0101 Mini-B Receptacle Unit: mm 0.2 P 0.8 4 1.2 4.8 0.7 8.5 TCS0101-110177 SMT Type 7.7 6.9 3.1 Boss 2- 0.8 9.9 4.5 B 1 3.95 3.1 3.9 Boss Rated Contact Resistance Insulation Resistance Withstanding Voltage Insertion & Withdrawal force 1A 30V AC max.

or 0.5A 5.25 DC max.

50mΩ max.

100MΩ min.

at 500V DC 100V AC for 1 minute Insertion 35N max.

Withdrawal 7N min.

BOSS A With Without Model No.

TCS0101-110177 TCS0101-310177 ABC aa 0.7
