CMS1600 Datasheet (HOSIDEN) - USB 3.0 Connectors

CMS1600, USB 3.0 Connectors

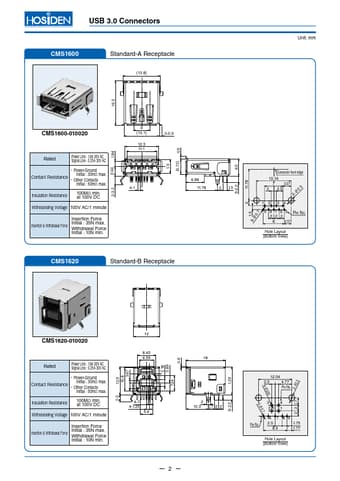

USB 3.0 Connectors CMS1600 Standard-A Receptacle (13.8) Unit: mm 16.5 CMS1600-010020 Rated Power Line : 1.8A 30V AC Signal Line : 0.25A 30V AC Contact Resistance PoInwiteiar-lG: r3o0umndΩ max.

Other Contacts Initial : 50mΩ max.

Insulation Resistance 100MΩ min.

at 100V DC Withstanding Voltage 100V AC/1 minute Insertion Force Insertion & Withdrawal Force Initial : 35N max.

Withdrawal Force Initial : 10N min.

2-3.2 (3.64) 1.84 6 (13.1) 12.5 11.1 2-0.9 5.12 (5.72) 0.9 6.8
