RFM69HW - ISM TRANSCEIVER MODULE

HOPERF

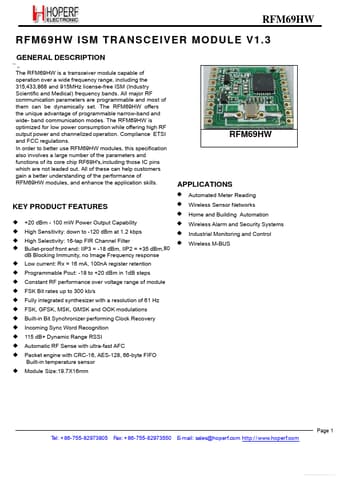

RFM69HW Datasheet Preview — Preview of RFM69HW PDF

Datasheet Details

Part number	RFM69HW
Manufacturer	HOPERF
File Size	1.23 MB
Description	ISM TRANSCEIVER MODULE
Datasheet	RFM69HW_HOPERF.pdf

RFM69HW Product details

Description

TAL ND The RFM69HW is a transceiver module capable of operation over a wide frequency range, including the 315,433,868 and 915MHz license-free ISM (Industry Scientific and Medical) frequency bands.All major RF communication parameters are programmable and most of them can be dynamically set.The RFM69HW offers the unique advantage of programmable narrow-band and wide- band communication modes.The RFM69HW is optimized for low power consumption while offering high RF output power and channelize

Features

+20 dBm - 100 mW Power Output Capability High Sensitivity: down to -120 dBm at 1.2 kbps High Selectivity: 16-tap FIR Channel Filter Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80 dB Blocking Immunity, no Image Frequency response Low current: Rx = 16 mA, 100nA register retention Programmable Pout: -18 to +20 dBm in 1dB steps Constant RF performance over voltage range of module FSK Bit rates up to 300 kb/s Fully integrated synthesizer with a resolution of.
