HY3008M, HY3008P - N-Channel Enhancement Mode MOSFET

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HY3008M, HY3008P. Please refer to the document for exact specifications by model.

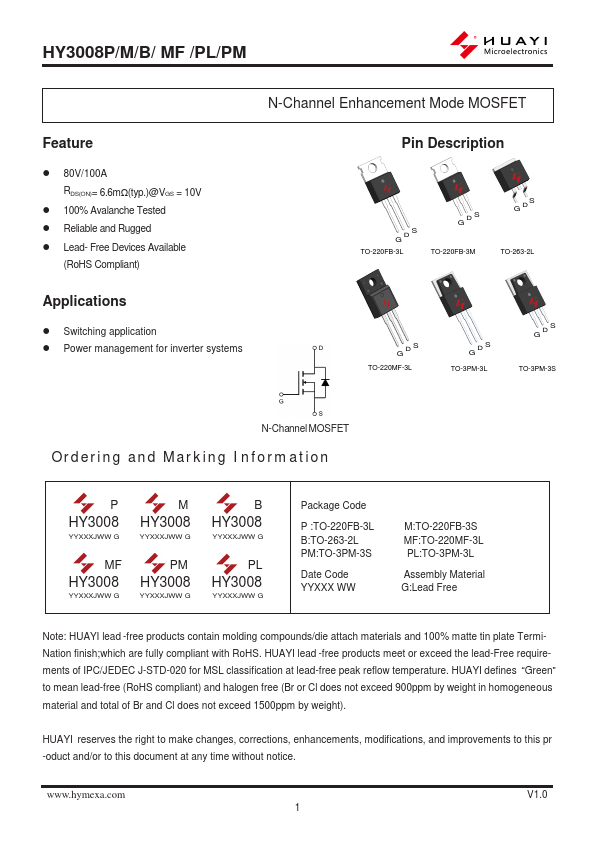

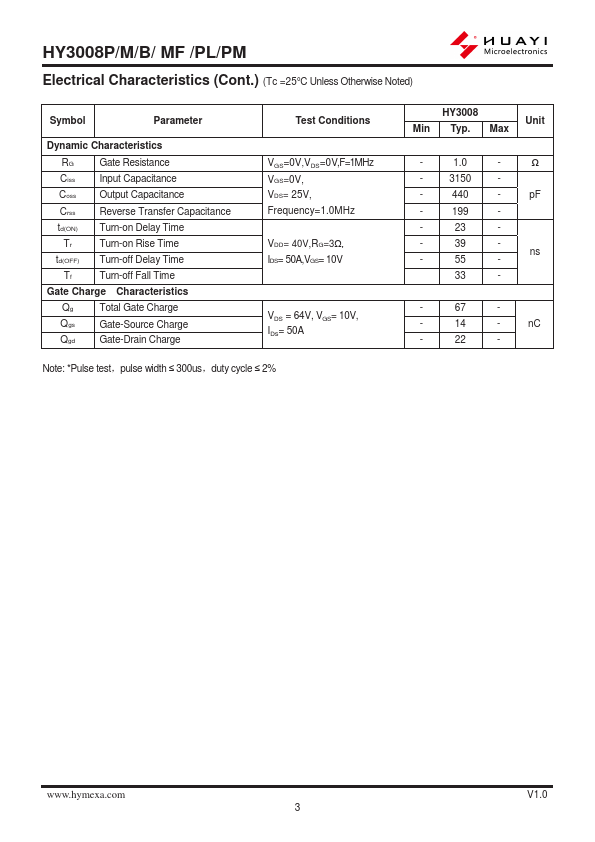

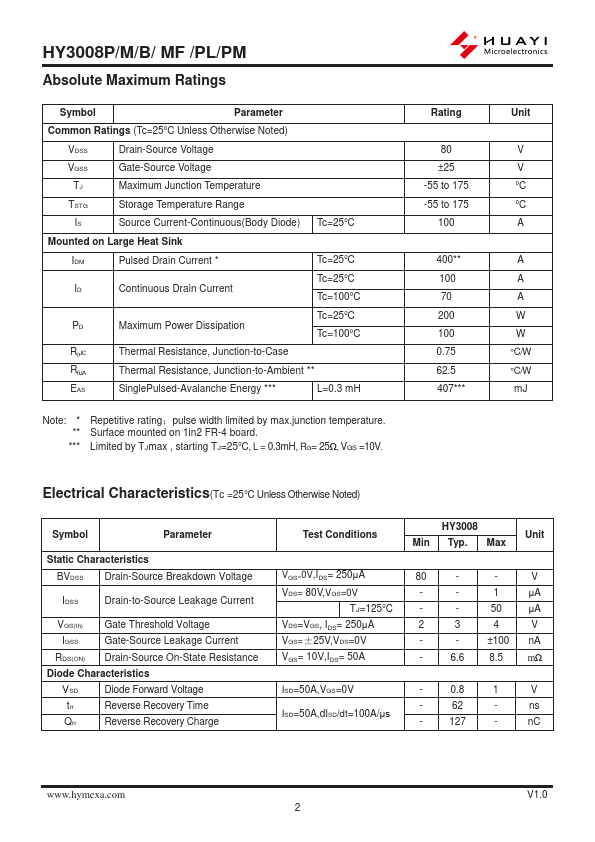

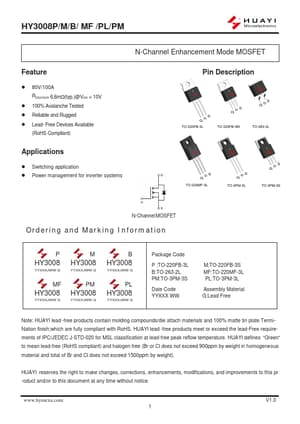

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HY3008M, HY3008P
Manufacturer HOOYI
File Size 2.10 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HY3008P-HOOYI.pdf
Note This datasheet PDF includes multiple part numbers: HY3008M, HY3008P.
Please refer to the document for exact specifications by model.

HY3008M Product details

Description

DS G TO-220FB-3L DS G TO-220FB-3M G DS TO-263-2L DS G TO-220MF-3L DS G TO-3PM-3L DS G TO-3PM-3S N-Channel MOSFET Ordering and Marking Information P HY3008
