SN74LS47N - seven segment digital tube decoder / driver

Datasheet Summary

Features

  • Direct drive common anode digital tube.
  • Fully compatible with TTL/DTL input and output logic level.
  • Convert BCD code to digital display function.
  • seven sections of figures “6” and “9” show "b" and "q" form.
  • Open drain output, withstanding voltage up to 15V.
  • Package : DIP16, SOP16.
  • Product.

📥 Download Datasheet

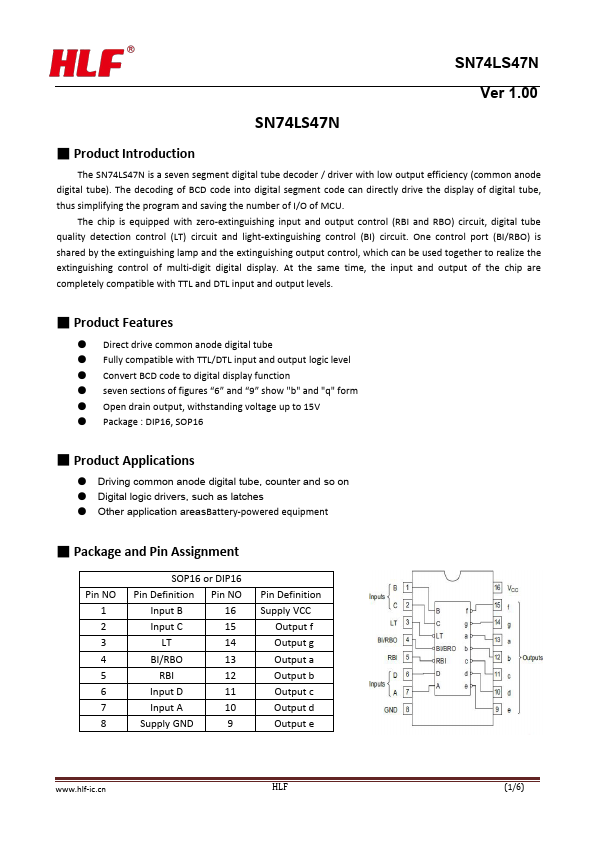

Datasheet preview – SN74LS47N

Datasheet Details

Part number SN74LS47N
Manufacturer HLF
File Size 391.64 KB
Description seven segment digital tube decoder / driver
Datasheet download datasheet SN74LS47N Datasheet

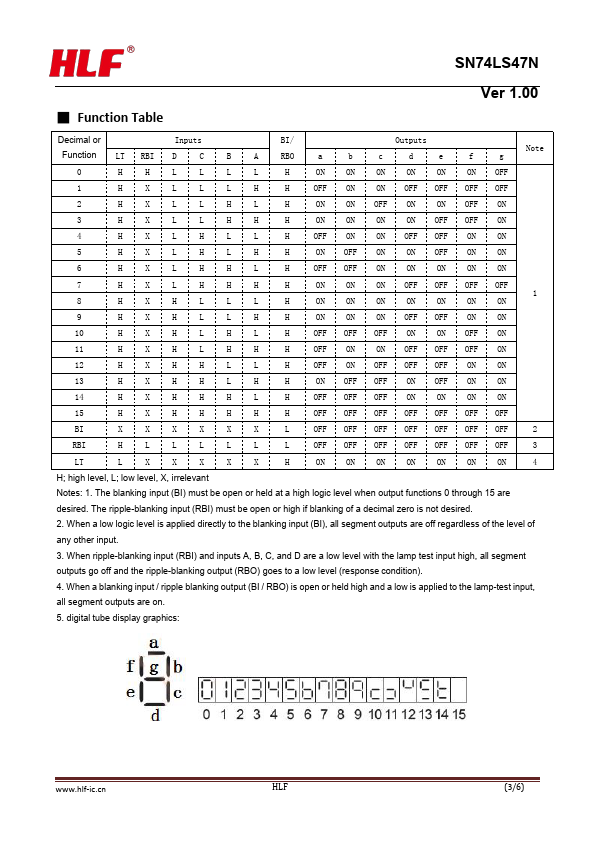

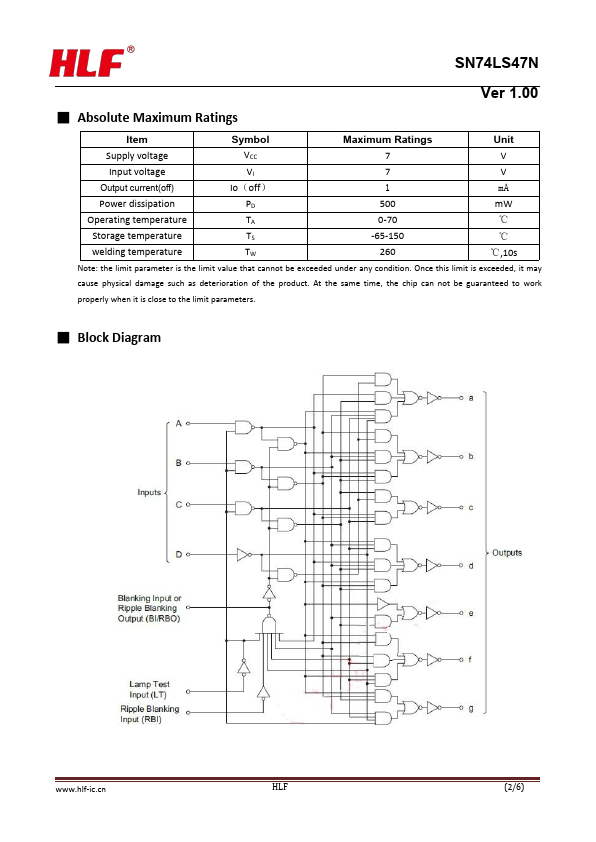

Additional preview pages of the SN74LS47N datasheet.

📁 Similar Datasheet

  • SN74LS47N - BCD to 7-Segment Decoder/Driver (ON Semiconductor)
  • SN74LS47N - BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS (Texas Instruments)
  • SN74LS47 - BCD to 7-Segment Decoder/Driver (ON Semiconductor)
  • SN74LS47 - BCD TO 7-SEGMENT DECODER/DRIVER (Motorola)
  • SN74LS47 - BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS (Texas Instruments)
  • SN74LS47D - BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS (Texas Instruments)
  • SN74LS47D - BCD to 7-Segment Decoder/Driver (ON Semiconductor)
  • SN74LS40 - DUAL 4-INPUT NAND BUFFER (Motorola)
  • SN74LS42 - ONE-OF-TEN DECODER (Motorola)
  • SN74LS42 - 1-of-10 Decoder (ON Semiconductor)
Other Datasheets by HLF

    Full PDF Text Transcription

    Click to expand full text
    SN74LS47N Ver 1.00 SN74LS47N ■ Product Introduction The SN74LS47N is a seven segment digital tube decoder / driver with low output efficiency (common anode digital tube). The decoding of BCD code into digital segment code can directly drive the display of digital tube, thus simplifying the program and saving the number of I/O of MCU. The chip is equipped with zero-extinguishing input and output control (RBI and RBO) circuit, digital tube quality detection control (LT) circuit and light-extinguishing control (BI) circuit. One control port (BI/RBO) is shared by the extinguishing lamp and the extinguishing output control, which can be used together to realize the extinguishing control of multi-digit digital display.
