CSP1205, CSP0603 - Wire Wound Power Inductor

HITANO

📥 Download Datasheet

CSP1205 Datasheet Preview — This datasheet PDF includes multiple part numbers: CSP1205, CSP0603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CSP1205, CSP0603
Manufacturer	HITANO
File Size	642.48 KB
Description	Wire Wound Power Inductor
Datasheet	CSP0603-HITANO.pdf
Note	This datasheet PDF includes multiple part numbers: CSP1205, CSP0603. Please refer to the document for exact specifications by model.

CSP1205 Product details

Description

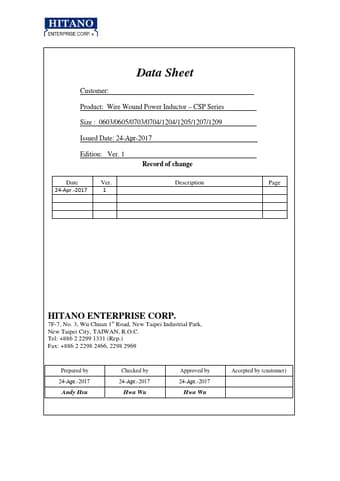

Page HITANO ENTERPRISE CORP.7F-7, No.3, Wu Chuan 1st Road, New Taipei Industrial Park, New Taipei City, TAIWAN, R.O.C.Tel: +886 2 2299 1331 (Rep.) Fax: +886 2 2298 2466, 2298 2969 Prepared by 24-Apr.-2017 Andy Hsu Checked by 24-Apr.-2017 Hwa Wu Approved by 24-Apr.-2017 Hwa Wu Accepted by (customer) WIRE WOUND POWER INDUCTOR CSP SERIES

Features

>.
The CSP series are characterized by low profile, low DC resistance, and high current handling.
Magnetically shielded, these parts can be used in high-density mounting configurations.
Flat bottom surface ensures secure, reliable mounting.
Provided in embossed carrier tape packaging for use with automatic mounting machines.
