20D470K, 20D180L Datasheet - HITANO

20D470K METAL OXIDE VARISTORS

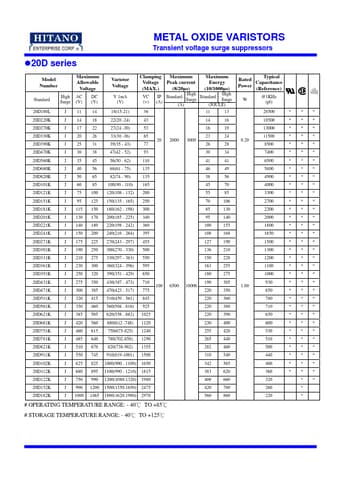

METAL OXIDE VARISTORS Transient voltage surge suppressors 20D series Model Number Maximum Allowable Voltage Standard High AC DC Surge (V) (V) 20D180L J 11 14 Varistor Voltage V 1mA (V) 18(15-21) Clamping Maximum Maximum Voltage Peak current Energy (MAX.) (8/20µs) (10/1000µs) VC (v) IP (A) Standard High Surge (A) Standard High Surge (JOULE) 36 11 13 Rated Power Typical Capacitance (Reference) W @1KHz (pf) 28500 20D220K J 14 18 22(20 -24) 43 .

20D180L-HITANO.pdf

20D470K Datasheet Preview — This datasheet PDF includes multiple part numbers: 20D470K, 20D180L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20D470K, 20D180L

Manufacturer:

HITANO

File Size:

215.19 KB

Description:

Metal oxide varistors.

Note:

This datasheet PDF includes multiple part numbers: 20D470K, 20D180L.
Please refer to the document for exact specifications by model.
