05D122K - METAL OXIDE VARISTORS

Download the 05D122K datasheet PDF (05D180L included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for metal oxide varistors.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (05D180L-HITANO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 05D122K
Manufacturer HITANO
File Size 105.30 KB
Description METAL OXIDE VARISTORS
Datasheet download datasheet 05D122K Datasheet

📁 Similar Datasheet

  • 05D121J - METAL OXIDE VARISTOR (SUNSTAR)
  • 05D121K - METAL OXIDE VARISTOR (SUNSTAR)
  • 05D121K - Metal Oxide Varistors (RUILON)
  • 05D121K - Radial Lead Varistor (SOCAY)
  • 05D121K - Metal Oxide Varistors (Lleiditech)
  • 05D121K - Varistor (TYEE)
  • 05D121K - METAL OXIDE VARISTOR (SONGLONG LISHANG)
  • 05D121KJ - Metal Oxide Varistors (RUILON)
  • 05D121KJ - Radial Lead Varistor (SOCAY)
  • 05D121KJ - Metal Oxide Varistors (Lleiditech)
Other Datasheets by HITANO

Full PDF Text Transcription

Click to expand full text

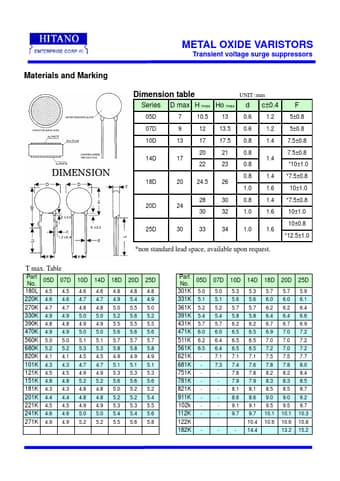

METAL OXIDE VARISTORS Transient voltage surge suppressors Materials and Marking Dimension table UNIT :mm Series D max H max Ho max d c±0.4 05D 7 10.5 13 0.6 1.2 F 5±0.8 07D 9 12 13.5 0.6 1.2 5±0.8 10D 13 17 17.5 0.8 1.4 7.5±0.8 20 21 0.8 7.5±0.8 14D 17 1.4 22 23 0.8 *10±1.0 0.8 1.4 *7.5±0.8 18D 20 24.5 26 1.0 1.6 10±1.0 28 30 0.8 1.4 *7.5±0.8 20D 24 30 32 1.0 1.6 10±1.0 10±0.8 25D 30 33 34 1.0 1.6 *12.5±1.0 *non standard lead space, available upon request. T max. Table Part No. 05D 07D 10D 14D 18D 20D 25D 180L 4.5 4.5 4.6 4.6 4.8 4.8 4.8 220K 4.6 4.6 4.7 4.7 4.9 5.4 4.9 270K 4.7 4.7 4.8 4.8 5.0 5.5 5.0 330K 4.9 4.9 5.0 5.0 5.2 5.6 5.2 390K 4.8 4.8 4.9 4.9 5.5 5.5 5.5 470K 4.9 4.9 5.0 5.0 5.6 5.6 5.6 560K 5.0 5.0 5.1 5.1 5.7 5.7 5.7 680K 5.2 5.2 5.3 5.
