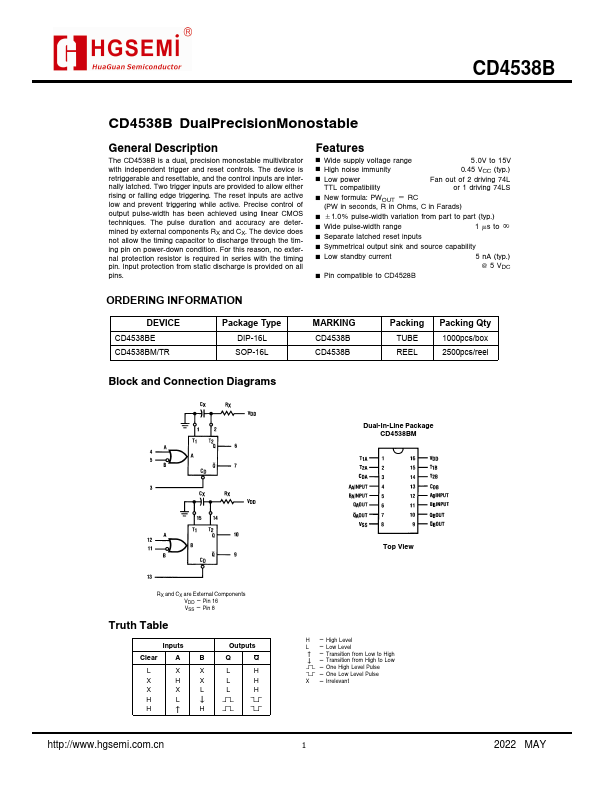

The CD4538B by HGSemi is a Dual Precision Monostable Multivibrator. Below is the official datasheet preview.
| Part number | CD4538B |
|---|---|
| Manufacturer | HGSemi |
| File Size | 1.13 MB |
| Description | Dual Precision Monostable Multivibrator |
| Datasheet |
 CD4538B-HGSemi.pdf
|
|
|
The CD4538B is a dual precision monostable multivibrator with independent trigger and reset controls The device is retriggerable and resettable and the control inputs are internally latched Two trigger inputs are provided to allow either rising or falling edge triggering The reset inputs are active low and prevent triggering while active Precise control of output pulse-width has been achieved using linear CMOS techniques The pulse duration and accuracy are determined by external components RX an
