TS820-800T, TS820 SCRs

HAOPIN

TS820-800T Description

TM HPM HAOPIN MICROELECTRONICS CO.,LTD.TS820 SCRs .
Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications.

TS820-800T Features

* Blocking voltage to 800 V On-state RMS current to 8 A Ultra low gate trigger current SYMBOL PARAMETER VDRM Repetitive peak off-state voltages IT RMS RMS on-state current ITSM Non-repetitive peak on-state current 600T 800T Value 600 800 8 73 Unit V A A SYMBOL Rth j-c PARAMETER Junction to

📥 Download Datasheet

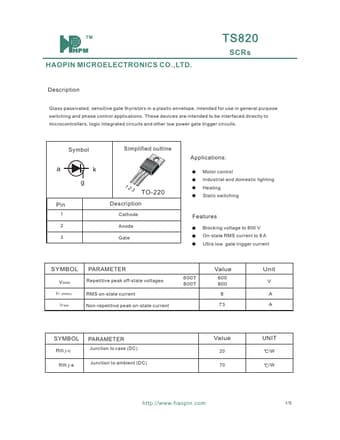

TS820-800T Datasheet Preview — This datasheet PDF includes multiple part numbers: TS820-800T, TS820. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: TS820-800T, TS820
Manufacturer: HAOPIN
File Size: 417.23 KB
Datasheet: TS820-HAOPIN.pdf
Description: SCRs
Note: This datasheet PDF includes multiple part numbers: TS820-800T, TS820.
Please refer to the document for exact specifications by model.
