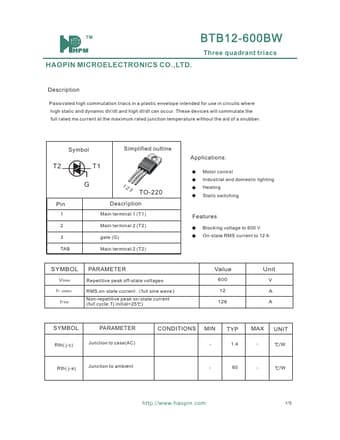

BTB12-600BW Datasheet (HAOPIN MICROELECTRONICS)

BTB12-600BW, Three quadrant triacs

Passivated high commutation triacs in a plastic envelope intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur.

These devices will commutate the full rated ms current at the maximum rated junction temperature without the aid of a snubber.

Symbol T2 T1 Simplified

BTB12-600BW Features

* Blocking voltage to 600 V On-state RMS current to 12 A Value 600 12 126 Unit V A A SYMBOL PARAMETER Rth( j-c) Junction to case(AC) Rth( j-a) Junction to ambient CONDITIONS MIN TYP - 1.4 MAX UNIT - /W - 60 - /W
