HPM2305 - P-Channel MOSFET

HPM2305 Description

-3.9A,-20VP 　P 　P-Channel Enhancement-Mode MOS FETs SMD 　　.

HPM2305 Features

* 　
* -20V, -3.9A, RDS(ON)=55mΩ @ VGS=-4.5V 　
* High dense cell design for extremely low RDS(ON) 　
* Rugged and reliable 　
* Lead free product is acquired 　
* SOT-23 Package 　
* Marking Code: A5 　　Case Material: Molded Plastic. 　　UL Flammability Classification Rating 94V-0 HPM2305 P-Chann

📥 Download Datasheet

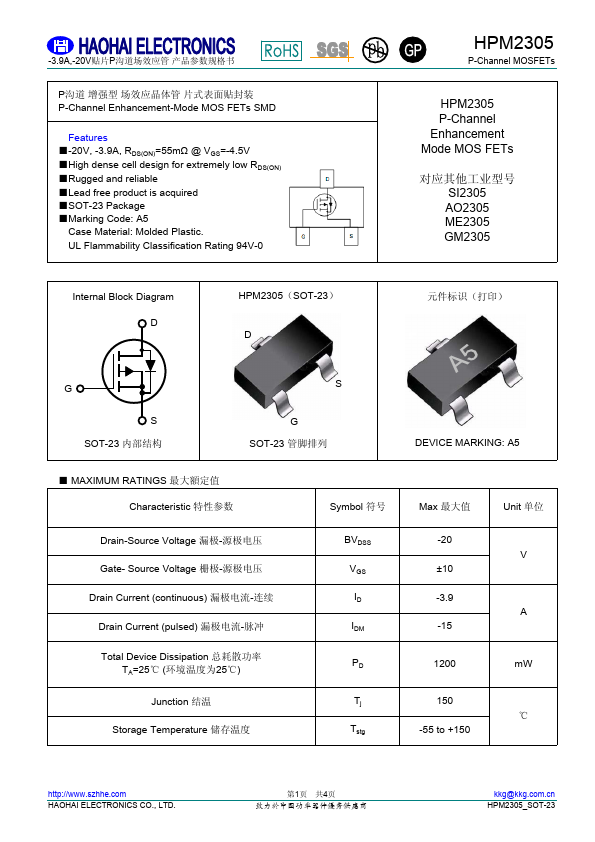

Preview of HPM2305 PDF

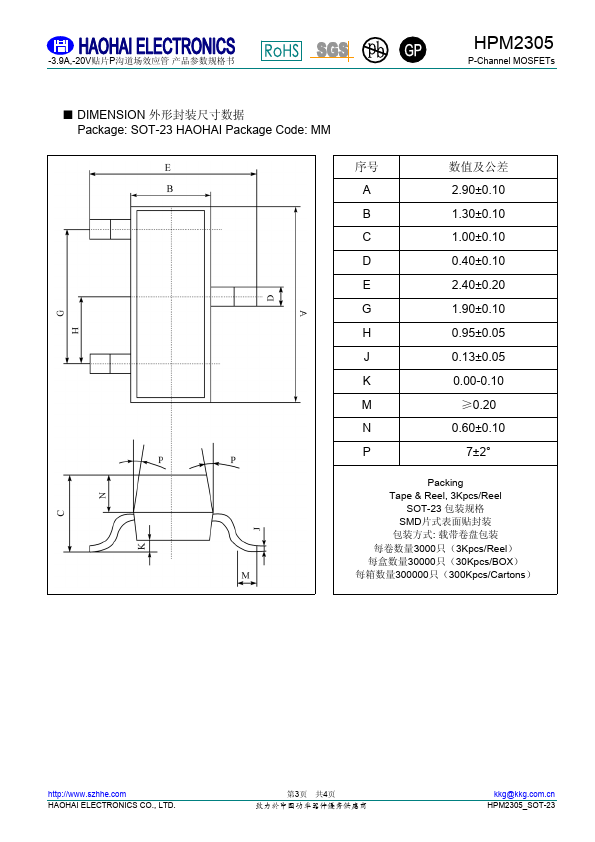

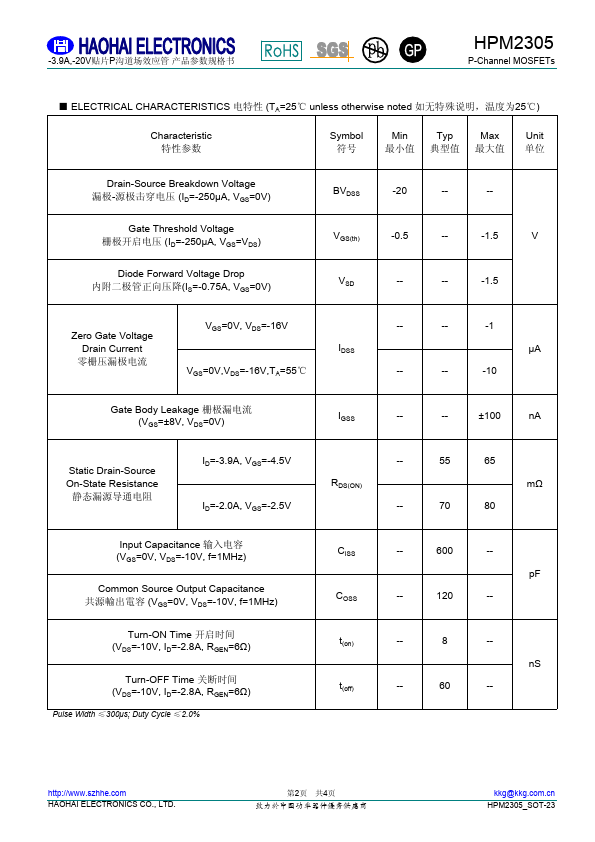

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HPM2305
Manufacturer
HAOHAI
File Size
273.07 KB
Datasheet
HPM2305-HAOHAI.pdf
Description
P-Channel MOSFET
