H1045L - Low VF Schottky Rectifier SMD

HAOHAI

📥 Download Datasheet

H1045L Datasheet Preview — Preview of H1045L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	H1045L
Manufacturer	HAOHAI
File Size	615.38 KB
Description	Low VF Schottky Rectifier SMD
Datasheet	H1045L-HAOHAI.pdf

H1045L Product details

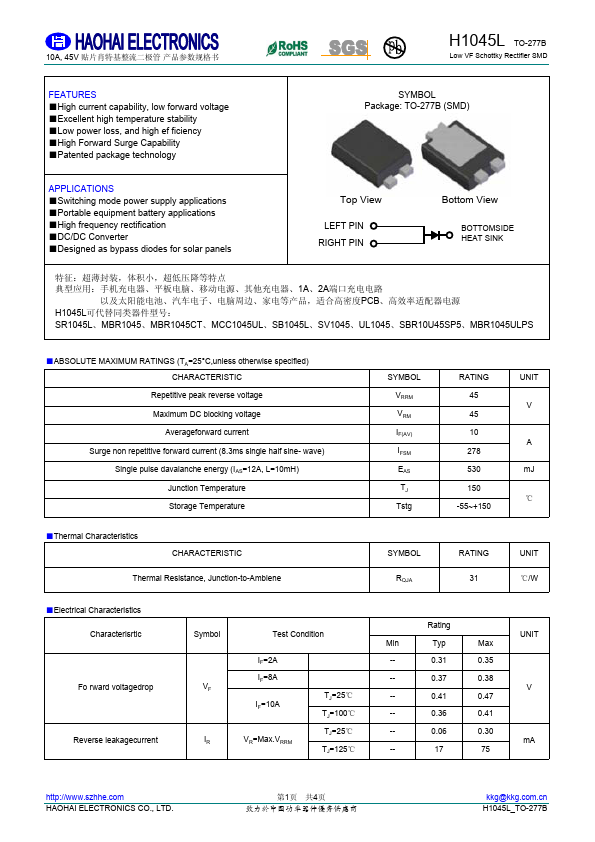

Features

High current capability, low forward voltage.
Excellent high temperature stability.
Low power loss, and high ef ficiency.
High Forward Surge Capability.
Patented package technology SYMBOL Package: TO-277B (SMD).
