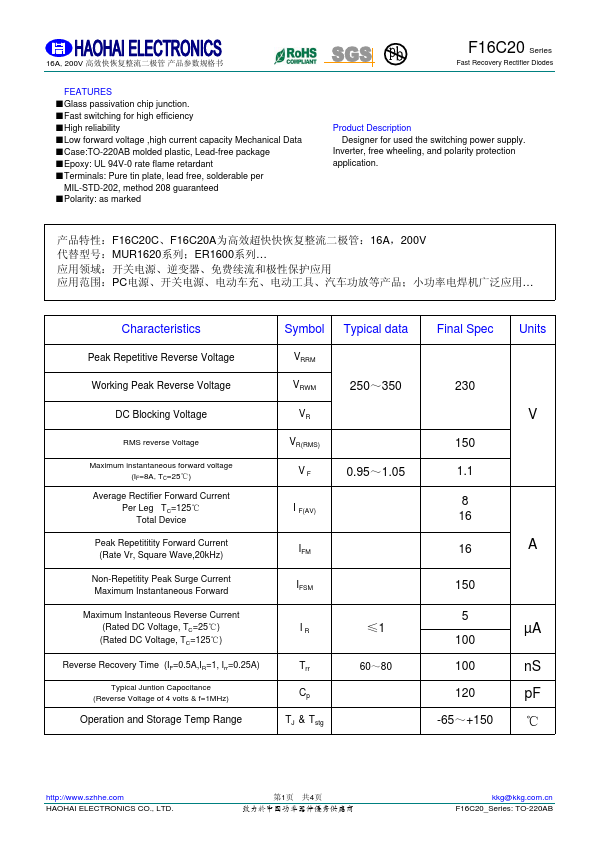

F16C20C, F16C20 - Fast Recovery Rectifier Diodes

HAOHAI

Datasheet Details

Part number	F16C20C, F16C20
Manufacturer	HAOHAI
File Size	217.44 KB
Description	Fast Recovery Rectifier Diodes
Datasheet	F16C20-HAOHAI.pdf
Note	This datasheet PDF includes multiple part numbers: F16C20C, F16C20. Please refer to the document for exact specifications by model.

　Designer for used the switching power supply.

　.
Glass passivation chip junction. 　.
Fast switching for high efficiency 　.
High reliability 　.
Low forward voltage ,high current capacity Mechanical Data 　.

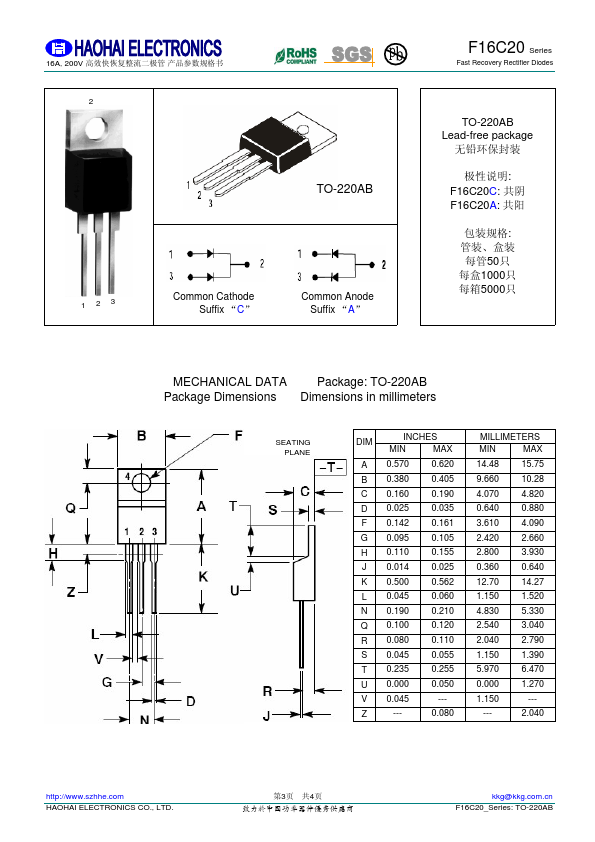

Case:TO-220AB molded plastic, Lead-free package 　.
Epoxy: UL 94V-0 rate flame retardant 　.
Terminals: Pure tin plate, lead free, solderable per 　　MIL-STD-202, method 208 guaranteed 　.
Polarity: as marked F16C20 Series Fast Recovery Rectifier Diodes Product.
