2SD882 - PNP EPITAXIAL SILICON TRANSISTOR

Name: 2SD882
SKU: 2SD882-1594091

HAOHAI

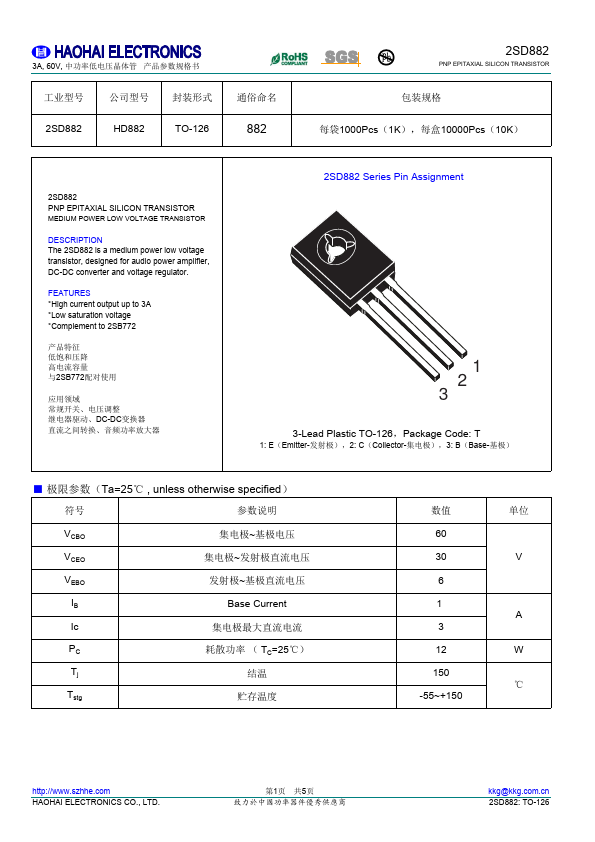

The 2SD882 by HAOHAI is a PNP EPITAXIAL SILICON TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	2SD882
Manufacturer	HAOHAI
File Size	455.26 KB
Description	PNP EPITAXIAL SILICON TRANSISTOR
Datasheet	2SD882-HAOHAI.pdf

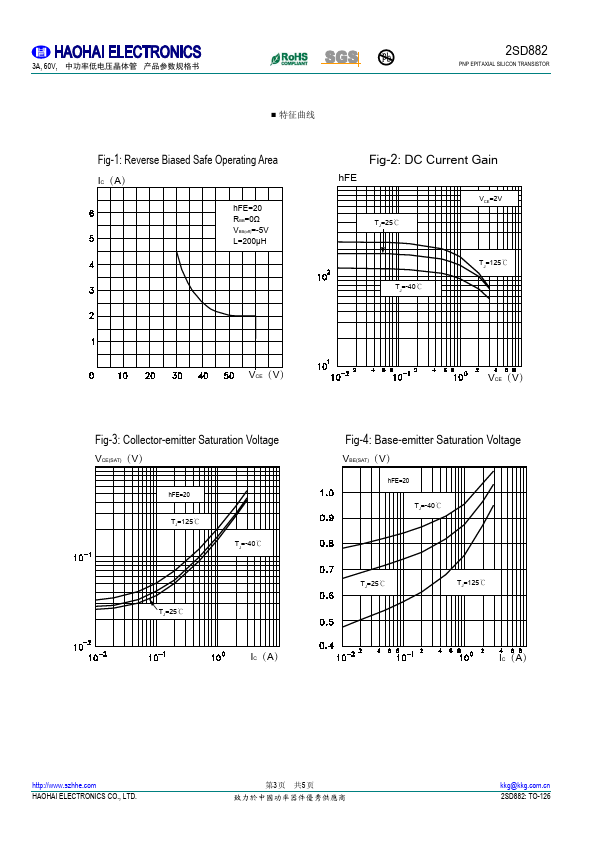

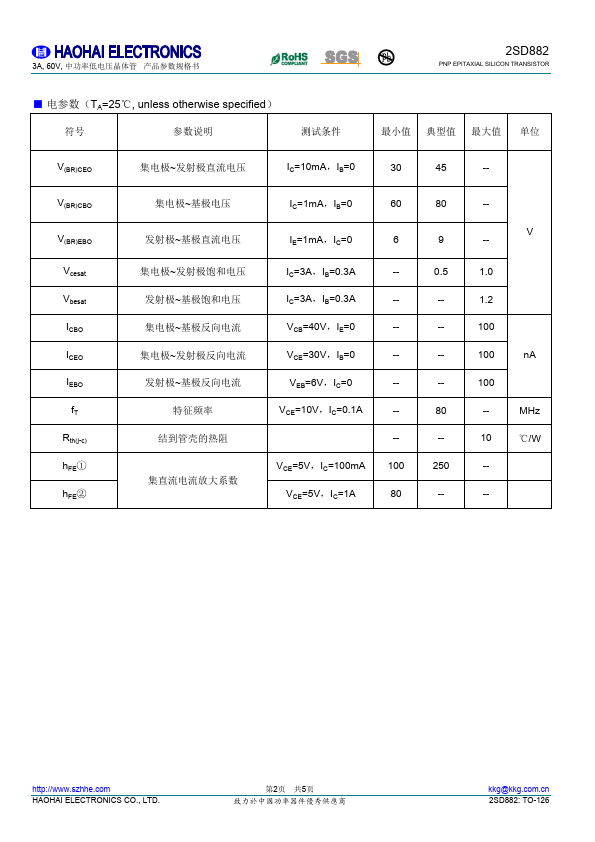

Additional preview pages of the 2SD882 datasheet.

　　The 2SD882 is a medium power low voltage 　　transistor, designed for audio power amplifier, 　　DC-DC converter and voltage regulator.

　　.
High current output up to 3A 　　.
Low saturation voltage 　　.
Complement to 2SB772 　　　　　　　　2SB772 　　　　、　　、DC-DC 　　、 2SD882 Series Pin Assignment 1 2 3 3-Lead Plastic TO-126，Package Code: T 1: E（Emitter-），2: C（Collector-），3: B（Base-）.
（Ta=25℃ , unless otherwise specified） VCBO VCEO VEBO IB Ic PC Tj Tstg ~ ~ ~ Base Current （ TC=25℃） 60 30 6 1 3 12 150 -55~+150 V A W ℃ http://www. szhhe. com HAOHAI.
