C12666MA - Finger-tip size ultra-compact spectrometer head integrating MEMS

HAMAMATSU

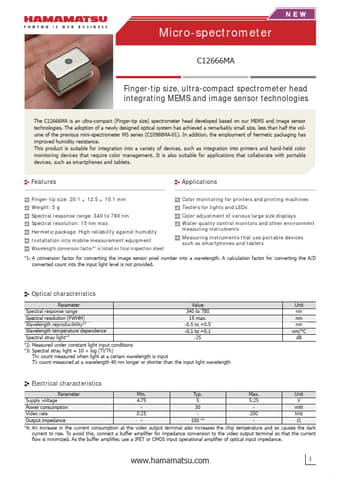

C12666MA Datasheet Preview — Preview of C12666MA PDF

Datasheet Details

Part number	C12666MA
Manufacturer	HAMAMATSU
File Size	803.13 KB
Description	Finger-tip size ultra-compact spectrometer head integrating MEMS
Datasheet	C12666MA-HAMAMATSU.pdf

C12666MA Product details

Description

Image sensor power supply: 5 V Video output signal Sensor ground Sensor scan sync signal Case connection terminal No connection Start pulse No connection Image sensor: Gain setting Sensor scan end signal Note: Pin no.9 is pulled up internally to Vdd via 10 kΩ.Do not pull-up or pull-down the gain setting using an external circuit.For low gain, leave the pin open or connect to Vdd.For high gain, connect to GND.7.62 0.7 5 http://www.Datasheet4U.com Micro-spectrometer C12666MA Internal

Features

Finger-tip size: 20.1 × 12.5 × 10.1 mm Weight: 5 g Spectral response range: 340 to 780 nm Spectral resolution: 15 nm max. Hermetic package: High reliability against humidity Installation into mobile measurement equipment Wavelength conversion factor.
1 is listed on final inspection sheet.
