HM50P03

The HM50P03 is P-Channel MOSFET designed by H&M semi.

Product Overview

H&M semi

📥 Download Datasheet

HM50P03 P-Channel MOSFET by H&M semi - Datasheet Preview — Datasheet preview – HM50P03

Datasheet Details

Part number	HM50P03
Manufacturer	H&M semi
File Size	1.21 MB
Description	P-Channel MOSFET
Datasheet	HM50P03-HMsemi.pdf

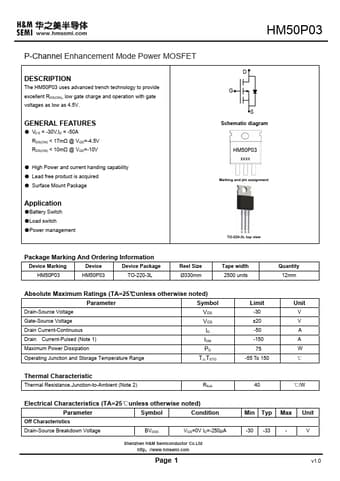

Additional preview pages of the HM50P03 datasheet.

Product details

Description

The HM50P03 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -50A RDS(ON) < 17mΩ @ VGS=-4.5V RDS(ON) < 10mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
