HMS20N70T - 700V N-Channel Super Junction MOSFET

H&M Semiconductor

📥 Download Datasheet

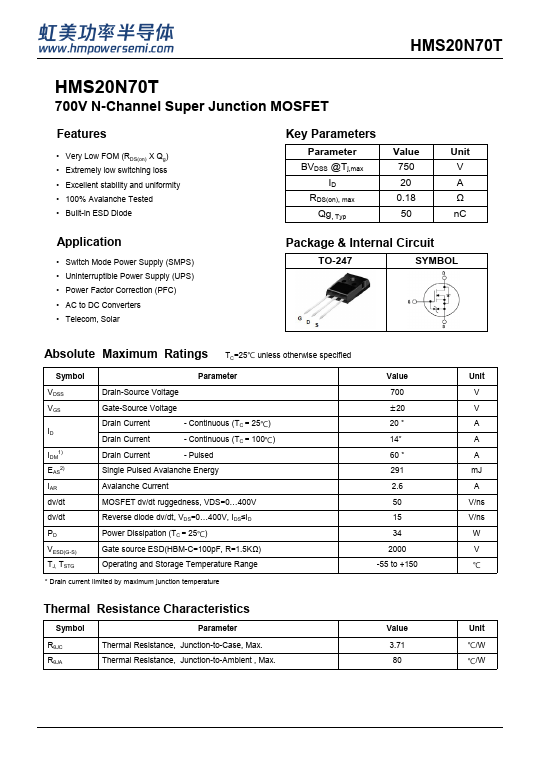

HMS20N70T Datasheet Preview — Preview of HMS20N70T PDF

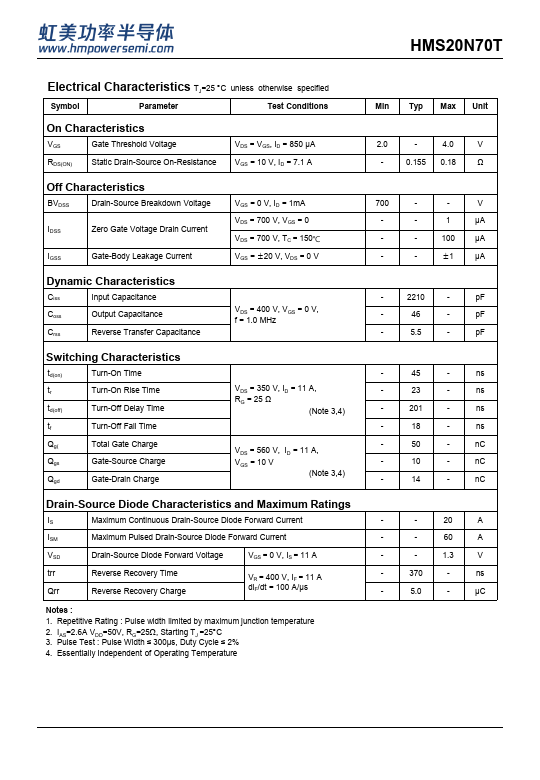

datasheet Preview Page 2

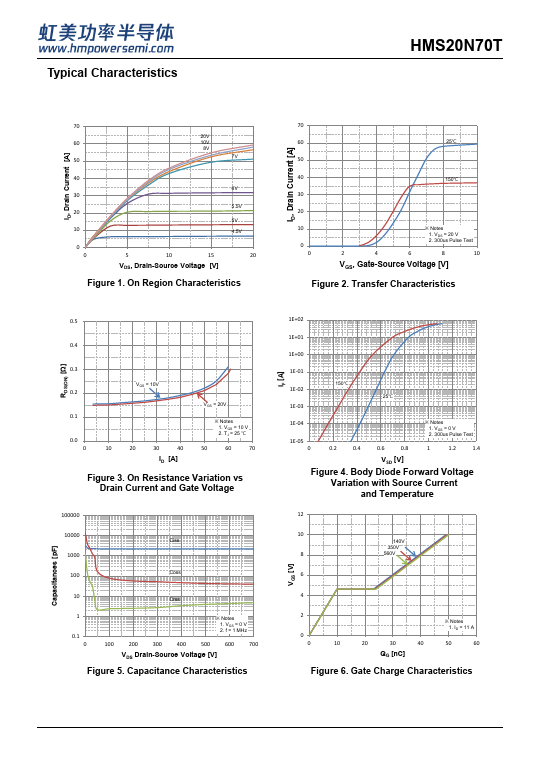

datasheet Preview Page 3

Datasheet Details

Part number	HMS20N70T
Manufacturer	H&M Semiconductor
File Size	360.83 KB
Description	700V N-Channel Super Junction MOSFET
Datasheet	HMS20N70T-HMSemiconductor.pdf

HMS20N70T Product details

Features

Very Low FOM (RDS(on) X Qg).
Extremely low switching loss.
Excellent stability and uniformity.
100% Avalanche Tested.
Built-in ESD Diode Key Parameters Parameter BVDSS @Tj,max ID RDS(on), max Qg, Typ Value 750 20 0.18 50 Unit V A Ω nC.
