HMS200N15D, HMS200N15 - N-Channel Super Trench II Power MOSFET

H&M Semiconductor

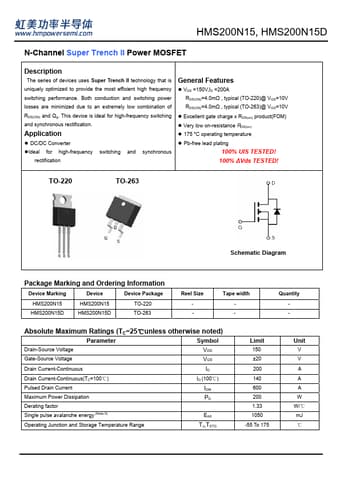

HMS200N15D Datasheet Preview — This datasheet PDF includes multiple part numbers: HMS200N15D, HMS200N15. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	HMS200N15D, HMS200N15
Manufacturer	H&M Semiconductor
File Size	811.84 KB
Description	N-Channel Super Trench II Power MOSFET
Datasheet	HMS200N15-HMSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HMS200N15D, HMS200N15. Please refer to the document for exact specifications by model.

HMS200N15D Product details

Description

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg.This device is ideal for high-frequency switching and synchronous rectification.Application DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =150V,ID =200A RDS(ON)=4.0mΩ , typical (TO-220)@ VGS=10V RDS(ON)=4.0mΩ , typical (TO-263)@ VGS=10V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220 TO-263 Schematic Diagram Package Marking and Ordering Information Device Marking Device Device Package HMS200N15 HMS200N15 TO-220 HMS200N15D HMS200N15D TO-263 Reel Size - Tape width -.
