HMS120N10D, HMS120N10 N-Channel Super Trench II Power MOSFET

H&M Semiconductor

Description

HMS120N10, HMS120N10D N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

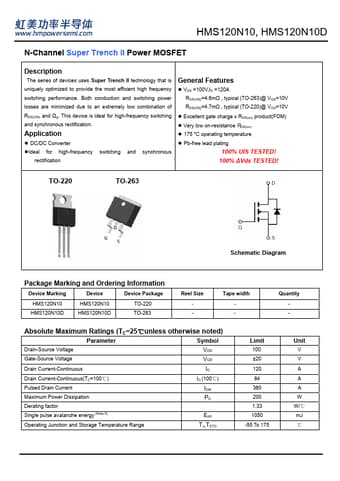

HMS120N10D Datasheet Preview — This datasheet PDF includes multiple part numbers: HMS120N10D, HMS120N10. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HMS120N10D, HMS120N10
Manufacturer: H&M Semiconductor
File Size: 740.12 KB
Datasheet: HMS120N10-HMSemiconductor.pdf
Description: N-Channel Super Trench II Power MOSFET
Note: This datasheet PDF includes multiple part numbers: HMS120N10D, HMS120N10.
Please refer to the document for exact specifications by model.

Features

* VDS =100V,ID =120A RDS(ON)=4.6mΩ , typical (TO-263)@ VGS=10V RDS(ON)=4.7mΩ , typical (TO-220)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-22
